Graph Builder Toolbar
Created:
| Last Modified:
Purpose
If you use Graph Builder often, the Graph Builder toolbar extension will help you by adding shortcuts to the report toolbar so that you can
- Open and close the Control Panel
- Toggle the legend on and off
How to Use

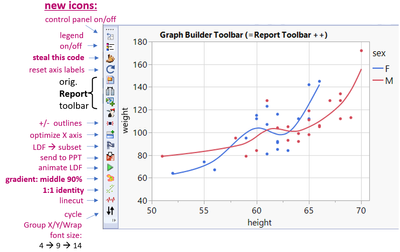

additional shortcuts Icons:
- Control Panel on/off. Toggle the Control Panel mode on/off (makes point plots much nicer)
- Legend on/off. Toggle the legend display on/off.
- reset axis labels if they were manually edited
- Outlines: toggles outlines for point plots and contour for heatmap plots on/off
- LDF -> subset: opens the current selection as a subset (= Show Subset)
- Send to PPT. Shortcut to send the graph to an open Powerpoint presentation (Windows only. Requires an open Powerpoint presentation)
- animate LDF: adds an animation menu and saves the graphs as images to tmp folder
- gradient: middle 90% (toggles it on/off)
- Linecut generate a linecut from a heatmap plot. Development and documentation of the code via the Community: Line Profile in JMP?
- Cycle Group X/Y/Wrap Font Size. Change the font size of Group X/Group Y/Wrap labels
implementing @ms's idea from Reduce font size for wrapped graph builder headings?
Unfortunately, this is possible via hacking the Preferences!
Here is a wish from 2019 to fix it in the future: Right-click to change Group font and font size
Note: I like it to have the report toolbar on the left of the window. To get it there, just right-click the toolbar and select Location > Left.
System Configuration
Add-in developed and testing using the following system configuration.
Windows
JMP 16
JMP 17
JMP 18
Special Considerations
PowerPoint is required to use the send to PowerPoint toolbar item. This requires a call to the operating system using the JSL function Run Program.
PowerShell is required to use the send to PowerPoint toolbar item.
Special Thanks
@jthi : Thanks for your great suggestions
