printing variable to textbox in variability chart

[#1]

when i run the following script, the charts are producted for each sample, however the textbox print sampleName instead of actually printing the value of the sample name.  how do i get around this?

thanks!

// Create a new window with variability charts for each sample name
New Window("whiteshirts - Variability Chart",
	V List Box(
		Current Data Table(summaryTable);
		For Each Row(
			summaryTable,
			sampleName = Column(summaryTable, "SAMPLE_NAME")[Row()];
			grandMin = Column(summaryTable, "Min(LAB_L)")[Row()];
			grandMax = Column(summaryTable, "Max(LAB_L)")[Row()];
			Print(sampleName, grandMin, grandMax);

            /*Text Box( "Where(:SAMPLE_NAME == " || char(sampleName) || ")", <<Set Wrap( 1903 ) );*/
			Text Box(Char(sampleName));
			Print("sampleName is " || sampleName);
			Data Table("whiteshirtsall") << Variability Chart(
				Y(:LAB_L),
				Model("Main Effect"),
				X(:shirt),
				Variability Analysis(
					:LAB_L,
					Std Dev Chart(0),
					AIAG Labels(0),
					Show Box Plots(1)
				),
				Where(:SAMPLE_NAME == sampleName),
				SendToReport(
					Dispatch(
						{"Variability Gauge Analysis for LAB_L", "Variability Chart for LAB_L"},
						"2", ScaleBox,
						{Add Ref Line(grandMin, "Solid", "Medium Dark Red", "", 2),
						Add Ref Line(grandMax, "Solid", "Medium Dark Red", "", 2),
						Label Row({Show Major Grid(1), Show Minor Grid(1)})}
					)
				)
			);
		);
	)
);

Edit 2024-09-05 jthi: added jsl formatting

[#2 · Accepted solution]

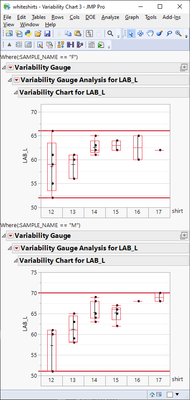

The text used in filter isn't being evaluated so it will be left as sampleName. Here is one way how you could evaluate it

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");

Column(dt, 2) << Set Name("shirt");
Column(dt, 3) << Set Name("SAMPLE_NAME");
Column(dt, 4) << Set Name("LAB_L");

dt_summary = dt << Summary(
	Group(:SAMPLE_NAME),
	Min(:LAB_L),
	Max(:LAB_L),
	Freq("None"),
	Weight("None"),
	Link to original data table(0),
	output table name("Summary of Big Class grouped by SAMPLE_NAME")
);


nw = New Window("whiteshirts - Variability Chart",
	V List Box(
		For Each Row(
			dt_summary,
			sampleName = Column(dt_summary, "SAMPLE_NAME")[Row()];
			grandMin = Column(dt_summary, "Min(LAB_L)")[Row()];
			grandMax = Column(dt_summary, "Max(LAB_L)")[Row()];
			Print(sampleName, grandMin, grandMax);

            /*Text Box( "Where(:SAMPLE_NAME == " || char(sampleName) || ")", <<Set Wrap( 1903 ) );*/
			Print("sampleName is " || sampleName);
			Eval(EvalExpr(
				dt << Variability Chart(
					Y(:LAB_L),
					Model("Main Effect"),
					X(:shirt),
					Variability Analysis(
						:LAB_L,
						Std Dev Chart(0),
						AIAG Labels(0),
						Show Box Plots(1)
					),
					Where(:SAMPLE_NAME == Expr(sampleName)),
					SendToReport(
						Dispatch(
							{"Variability Gauge Analysis for LAB_L", "Variability Chart for LAB_L"},
							"2", ScaleBox,
							{Add Ref Line(grandMin, "Solid", "Medium Dark Red", "", 2),
							Add Ref Line(grandMax, "Solid", "Medium Dark Red", "", 2),
							Label Row({Show Major Grid(1), Show Minor Grid(1)})}
						)
					)
				);
			));
		);
	)
);
