BabyDoragon
Level IV

How can I output the graph in the same window as the button?

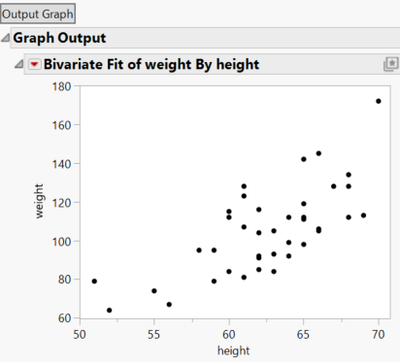

When I write the command to output the graph in the button, it actually outputs in a new window. What should I do to output the graph in the same window (as shown in the figure below)?



Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
nw2 = New Window( "New window",
	outputG = Button Box( "Output Graph",
		Outline Box( "Graph Output",
		Bivariate( y( :weight ), x( :height ) ); )
	)
);
1 ACCEPTED SOLUTION

Accepted Solutions
txnelson
Super User

Re: How can I output the graph in the same window as the button?

The objects created when the button box is clicked need to be appended back to the window.

Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
nw2 = New Window( "New window",
	outputG = Button Box( "Output Graph",
		ob = Outline Box( "Graph Output",
			Bivariate( y( :weight ), x( :height ) )
		);
		nw2 << append( ob );
	)
);
Jim

View solution in original post

2 REPLIES 2
jthi
Super User

Re: How can I output the graph in the same window as the button?

You could collect them into some display element

Names Default To Here(1);
dt = Open("$SAMPLE_DATA/Big Class.jmp");
nw2 = New Window("New window",
	outputG = Button Box("Output Graph",
		vlb << Append(Outline Box("Graph Output", Bivariate(y(:weight), x(:height))))
	),
	vlb = V List Box()
);
-Jarmo
txnelson
Super User

Re: How can I output the graph in the same window as the button?

The objects created when the button box is clicked need to be appended back to the window.

Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
nw2 = New Window( "New window",
	outputG = Button Box( "Output Graph",
		ob = Outline Box( "Graph Output",
			Bivariate( y( :weight ), x( :height ) )
		);
		nw2 << append( ob );
	)
);
Jim
