how to create OC curve

wang_rr

Community Member

Joined:

Dec 19, 2014


Is any body know how to create an OC curve (operational charateristic curve) with JMP?

1 ACCEPTED SOLUTION

Accepted Solutions
kevin_c_anderso

Community Trekker

Joined:

Jun 5, 2014

Solution

Before I go too far, I want to point you towards an article in the Journal of Statistics Education (1998) by Gatti and Harwell entitled "Advantages of Computer Programs Over Power Charts for the Estimation of Power", in which they detail how OC charts are difficult to read, and fraught with error.

Nonetheless, OC-like charts can be easily generated in JMP by entering one of the three inputs (like Power, for instance) in the Sample Size and Power platform under the DOE pulldown:

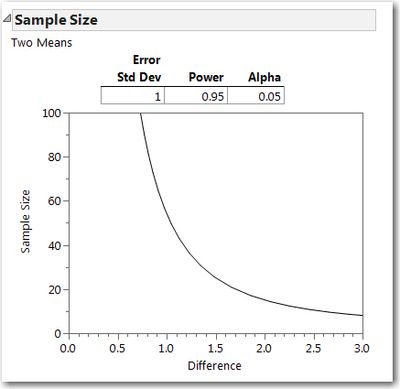

7801_OC Curve.jpg

Of course, Pearson-Hartley OC Curves can be exactly reproduced in JSL with some dedication and perseverence.

2 REPLIES
kevin_c_anderso

Community Trekker

Joined:

Jun 5, 2014

Solution

Before I go too far, I want to point you towards an article in the Journal of Statistics Education (1998) by Gatti and Harwell entitled "Advantages of Computer Programs Over Power Charts for the Estimation of Power", in which they detail how OC charts are difficult to read, and fraught with error.

Nonetheless, OC-like charts can be easily generated in JMP by entering one of the three inputs (like Power, for instance) in the Sample Size and Power platform under the DOE pulldown:

7801_OC Curve.jpg

Of course, Pearson-Hartley OC Curves can be exactly reproduced in JSL with some dedication and perseverence.

phil_kay

Staff

Joined:

Jul 22, 2014

Updating for anyone searching on this.



OC curves are now available from control charts and the JMP Starter. Search for "OC curve" in JMP Help.
