Hi,

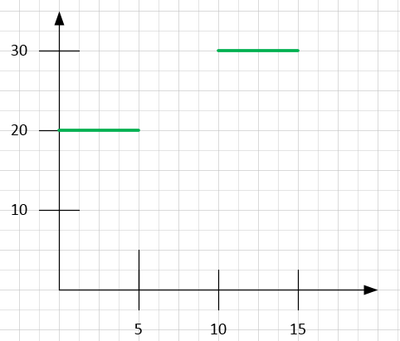

Title was maybe a bit badly explained, but below I added a simple csv example and a visio plot illustrating what I want. Not sure what to call this kind of plot, or how to use two columns to set a range(start and stop) where y-value is valid.

CSV:

Column Y;Column X0;Column X1

20;0;5

30;10;15

2 ACCEPTED SOLUTIONS

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

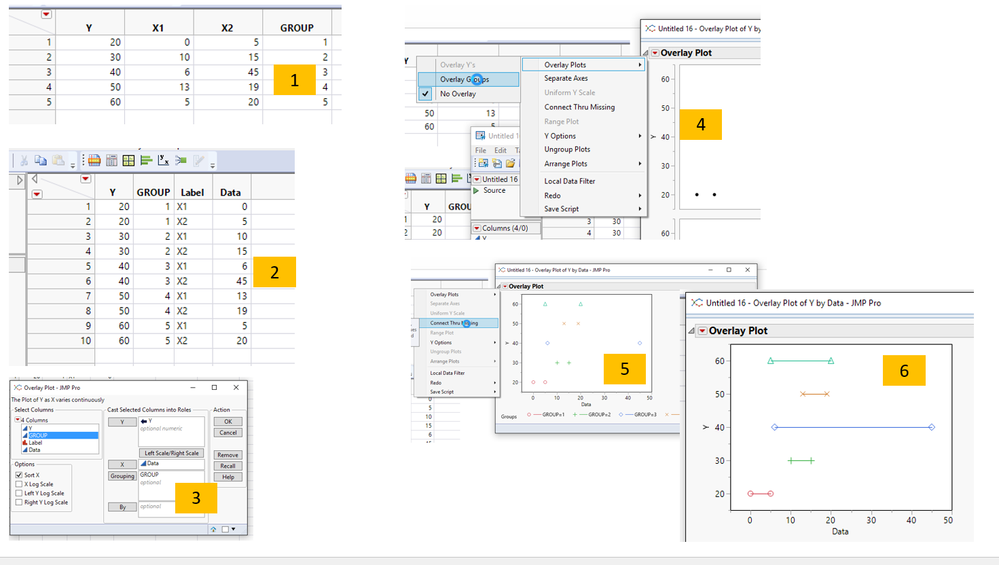

1. Add group column

2. Stack Table by X1,X2

3. Make Overlay Plot

4. Overlay Groups

5. Connect Through Missing

May not be the most elegant but kinda gets you what you described

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Read in the data into JMP

Stack the data either interactively or with the script

```
Data Table( "Untitled 4" ) << Stack(
columns( :Column X0, :Column X1 ),
Source Label Column( "Label" ),
Stacked Data Column( "Data" )
);
```

Then run graph builder interactively or by using the script below

```

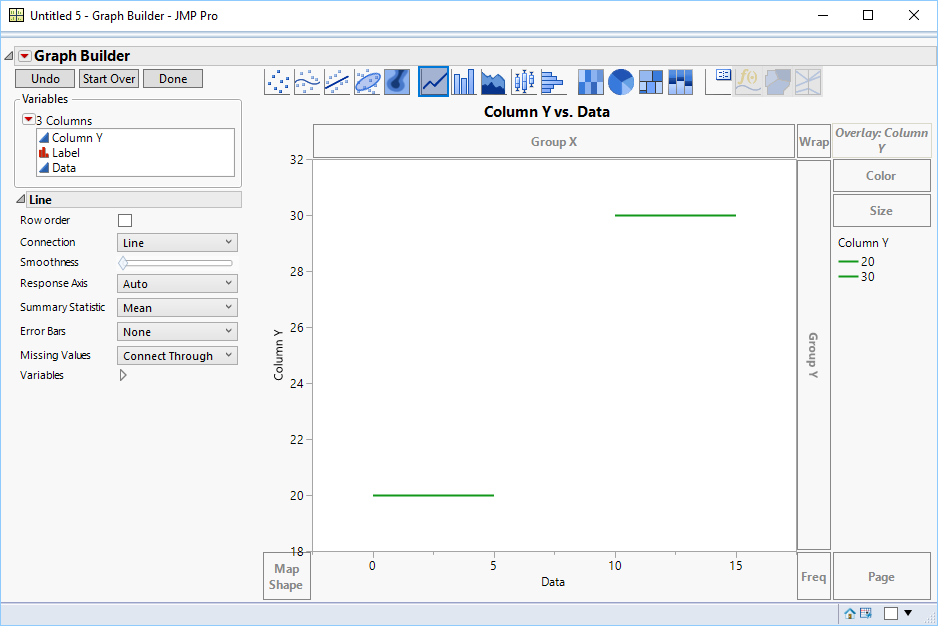

Graph Builder(
Variables( X( :Data ), Y( :Column Y ), Overlay( :Column Y ) ),
Elements( Line( X, Y, Legend( 5 ) ) ),
SendToReport(
Dispatch(
{},
"400",
ScaleBox,
{Legend Model(
5,
Properties( 0, {Line Color( 20 )} ),
Properties( 1, {Line Color( 20 )} )
)}
)
)
);
```

Jim
