Tricky Question about the Graph Builder

sebastianhoffme

Community Trekker

Joined:

Mar 27, 2015

Hi JMPers,



I'm trying to convince a large customer to use JMP. Now I'm having a hard time to reproduce one of their applications in JMP.

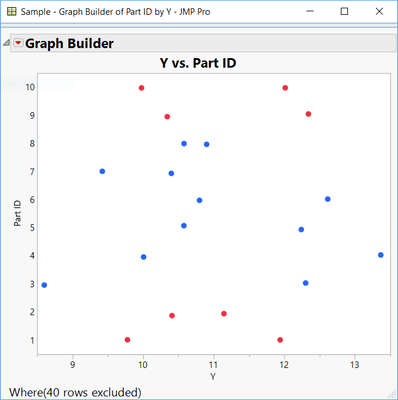

The first problem I face, is that we would like to keep the colors from the row-states while using the Overlay-option.Step 1.pngWe need the above graph (including the blue and red colored points) with connection lines between the two points of each part (Y-axis).Step 2.pngI can get the connection line using the overlay, but then I have to manually adjust the colors.

At the same time we will have to add multiple upper- and lower-spec-limits to the graph.

At the end we would like to have something like the following graph:Step 4.png



I was able to produce the graph using multiple manual steps (like Copy & Paste Frame Content) but the goal would be to generate this plot just with the standard graph-builder-tools - especially to keep the interactivity.



I would be very glad for any kind of advice.



Thanks,

Sebastian



This would be the given data structure:





New Table( "Sample",
	Add Rows( 20 ),
	New Column( "Part ID",
		Numeric,
		"Nominal",
		Format( "Best", 12 ),
		Set Values( [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10] )
	),
	New Column( "X1",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values( [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] )
	),
	New Column( "X2",
		Character,
		"Nominal",
		Set Values(
			{"cold", "cold", "cold", "cold", "cold", "cold", "cold", "cold", "cold",
			"cold", "medium", "medium", "medium", "medium", "medium", "medium",
			"medium", "medium", "medium", "medium"}
		)
	),
	New Column( "Y",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Formula(
			If(
				:X2 == "cold", Random Normal() + 10,
				:X2 == "medium", Random Normal() + 12,
				Random Normal()
			)
		)
	),
	New Column( "Y_USL",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values(
			[15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 16, 16, 16, 16, 16, 16, 16, 16,
			16, 16]
		)
	),
	New Column( "Y_LSL",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values( [7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 6, 6] )
	),
	Set Row States(
		[768, 768, 1280, 1280, 1280, 1280, 1280, 1280, 768, 768, 768, 768, 1280,
		1280, 1280, 1280, 1280, 1280, 768, 768]
	)
)



By the way: Your link to the "JSL Syntax Highligher" seems to be broken. At least I end up at an empty page.

1 ACCEPTED SOLUTION

Accepted Solutions
stephen_pearson

Community Trekker

Joined:

Oct 6, 2014

Solution

You can achieve your desired result with almost no JSL scripting. First create a bar chart with range error bars. Then set the transparency of the bars to zero, so they vanish. Now add a set of points by shift-clicking. Save this JSL to the script window.

The only bit of scripting is to use the Col Maximum()/Col Minimum() functions to draw on the reference lines.

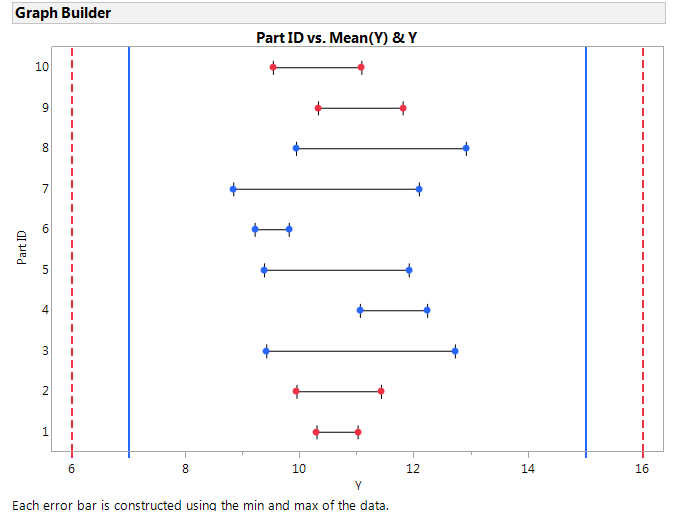

example graph.png



Graph Builder(
	Size( 663, 468 ),
	Show Control Panel( 0 ),
	Show Legend( 0 ),
	Variables( X( :Y ), Y( :Part ID ) ),
	Elements(
		Bar( X, Y, Legend( 16 ), Error Bars( "Range" ) ),
		Points( X, Y, Legend( 14 ), Jitter( 0 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"Y",
			ScaleBox,
			{Format( "Best", 12 ), Min( 5.64697504725641 ), Max( 16.37329465957 ),
			Inc( 2 ), Minor Ticks( 1 ),
			Add Ref Line( Col Minimum(:Y_LSL), "Dashed", "Red", "", 2 ),
			Add Ref Line( Col Maximum(:Y_USL), "Dashed", "Red", "", 2 ),
			Add Ref Line( Col Maximum(:Y_LSL), "Solid", "Blue", "", 2 ),
			Add Ref Line( Col Minimum(:Y_USL), "Solid", "Blue", "", 2 )}
		),
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				16,
				Properties( 0, {Fill Color( 2 ), Transparency( 0 )} )
			)}
		),
		Dispatch( {}, "Graph Builder", FrameBox, {Marker Size( 4 )} )
	)
);
3 REPLIES
chris_kirchberg

Joined:

May 28, 2014

Hi,



If you right click on the x-axis, you can add reference lines that would represent the limits.



Will that work?



Chris




txnelson

Super User

Joined:

Jun 22, 2012

Here is a script that creates what you want for an output graph.  I added a sample data table, as you had, but with one addition.  The trick to get Graph Builder to use the same colors as the row state color, is actually to set the value colors for Part_ID to the colors you want.  Then Graph Builder uses those colors for the Overlay.  Also added to the Graph Builder code are axis reference lines.  Now, the code I am providing is static code, but JSL could easily generate the platform code you need by reading the data table and figuring out the reference lines that are needed, and then to just modify the Graph Builder code as required.  Finally, I modified the actual line colors manually, and then saved the whole Graph Builder script..  From your question, I assumed you wanted to see how to get the results you want.  Thus my response.  Creating the graph from generic data tables is not included in my response, but it can certainly be scripted.

Names Default to Here( 1 );
New Table( "Sample",
	Add Rows( 20 ),
	New Column( "Part ID",
		Numeric,
		"Nominal",
		Format( "Best", 12 ),
		Set Property( "Value Colors", {1 = 3, 2 = 3, 3 = 5, 4 = 5, 5 = 5, 6 = 5, 7 = 5, 8 = 5, 9 = 3, 10 = 3} ),
		Set Values( [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10] )
	),
	New Column( "X1",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values( [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] )
	),
	New Column( "X2",
		Character,
		"Nominal",
		Set Values(
			{"cold", "cold", "cold", "cold", "cold", "cold", "cold", "cold", "cold", "cold", "medium", "medium", "medium",
			"medium", "medium", "medium", "medium", "medium", "medium", "medium"}
		)
	),
	New Column( "Y",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Formula( If( :X2 == "cold", Random Normal() + 10, :X2 == "medium", Random Normal() + 12, Random Normal() ) )
	),
	New Column( "Y_USL",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values( [15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16] )
	),
	New Column( "Y_LSL",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values( [7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 6, 6] )
	),
	Set Row States(
		[768, 768, 1280, 1280, 1280, 1280, 1280, 1280, 768, 768, 768, 768, 1280, 1280, 1280, 1280, 1280, 1280, 768, 768]
	)
);

Graph Builder(
	Size( 509, 443 ),
	Show Control Panel( 0 ),
	Variables( X( :Y ), Y( :Part ID ), Overlay( :Part ID ) ),
	Elements( Line( X, Y, Legend( 4 ), Row order( 1 ) ), Points( X, Y, Legend( 6 ), Jitter( 0 ) ) ),
	SendToReport(
		Dispatch(
			{},
			"Y",
			ScaleBox,
			{Min( 5.43667408790577 ), Max( 16.635593220339 ), Inc( 2 ), Minor Ticks( 0 ),
			Add Ref Line( 16, "Dashed", "Red", "", 2 ), Add Ref Line( 15, "Solid", "Medium Dark Blue", "", 2 ),
			Add Ref Line( 7, "Solid", "Medium Dark Blue", "", 2 ), Add Ref Line( 6, "Dashed", "Medium Dark Red", "", 2 )}
		),
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				4,
				Properties( 0, {Line Color( 0 )} ),
				Properties( 1, {Line Color( 0 )} ),
				Properties( 2, {Line Color( 0 )} ),
				Properties( 3, {Line Color( 0 )} ),
				Properties( 4, {Line Color( 0 )} ),
				Properties( 5, {Line Color( 0 )} ),
				Properties( 6, {Line Color( 0 )} ),
				Properties( 7, {Line Color( 0 )} ),
				Properties( 8, {Line Color( 0 )} ),
				Properties( 9, {Line Color( 0 )} )
			), Legend Model(
				6,
				Properties( 0, {Marker( "FilledCircle" )} ),
				Properties( 1, {Marker( "FilledCircle" )} ),
				Properties( 2, {Marker( "FilledCircle" )} ),
				Properties( 3, {Marker( "FilledCircle" )} ),
				Properties( 4, {Marker( "FilledCircle" )} ),
				Properties( 5, {Marker( "FilledCircle" )} ),
				Properties( 6, {Marker( "FilledCircle" )} ),
				Properties( 7, {Marker( "FilledCircle" )} ),
				Properties( 8, {Marker( "FilledCircle" )} ),
				Properties( 9, {Marker( "FilledCircle" )} )
			)}
		)
	)
);

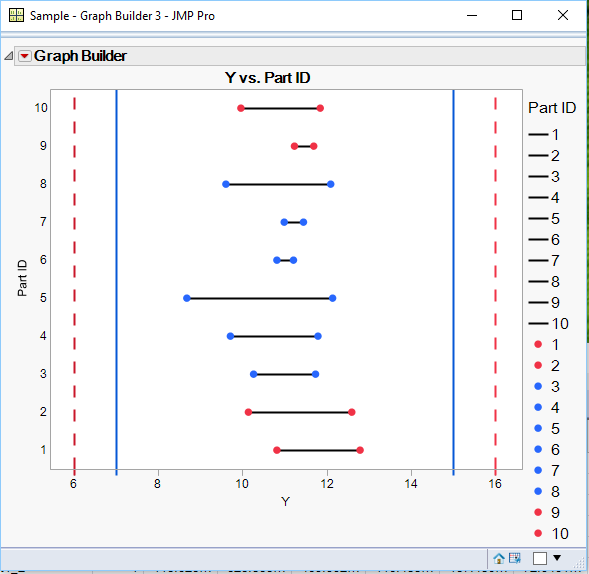

fancy graph builder.PNG

Jim
stephen_pearson

Community Trekker

Joined:

Oct 6, 2014

Solution

You can achieve your desired result with almost no JSL scripting. First create a bar chart with range error bars. Then set the transparency of the bars to zero, so they vanish. Now add a set of points by shift-clicking. Save this JSL to the script window.

The only bit of scripting is to use the Col Maximum()/Col Minimum() functions to draw on the reference lines.



example graph.png



Graph Builder(
	Size( 663, 468 ),
	Show Control Panel( 0 ),
	Show Legend( 0 ),
	Variables( X( :Y ), Y( :Part ID ) ),
	Elements(
		Bar( X, Y, Legend( 16 ), Error Bars( "Range" ) ),
		Points( X, Y, Legend( 14 ), Jitter( 0 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"Y",
			ScaleBox,
			{Format( "Best", 12 ), Min( 5.64697504725641 ), Max( 16.37329465957 ),
			Inc( 2 ), Minor Ticks( 1 ),
			Add Ref Line( Col Minimum(:Y_LSL), "Dashed", "Red", "", 2 ),
			Add Ref Line( Col Maximum(:Y_USL), "Dashed", "Red", "", 2 ),
			Add Ref Line( Col Maximum(:Y_LSL), "Solid", "Blue", "", 2 ),
			Add Ref Line( Col Minimum(:Y_USL), "Solid", "Blue", "", 2 )}
		),
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				16,
				Properties( 0, {Fill Color( 2 ), Transparency( 0 )} )
			)}
		),
		Dispatch( {}, "Graph Builder", FrameBox, {Marker Size( 4 )} )
	)
);
