Dec 20, 2017 2:44 AM
(4325 views)

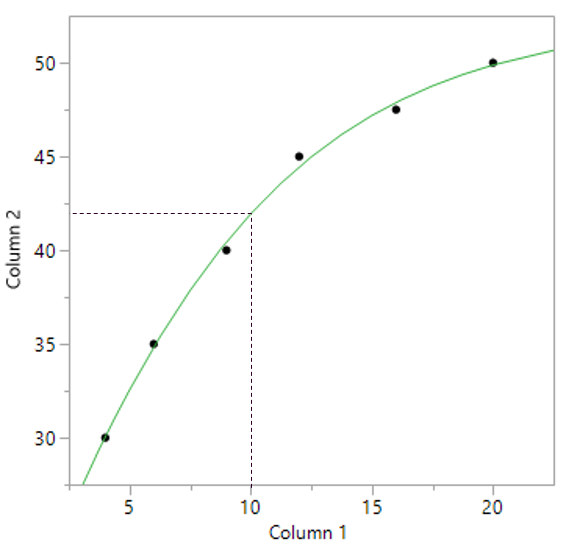

I am trying to script a graph that shows the predicted value on the y-axis from some specified value on the x-axis on a soft curve. I have managed to pull out the prediction formula and obtain the relevant values to define reference lines. However to communicate this effectively i would like the reference lines to stop at the curve and preferable to be dashed. The above image is as far as I have been able to go with jsl scripting. Below is where I would like to end up.

Thanks!

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

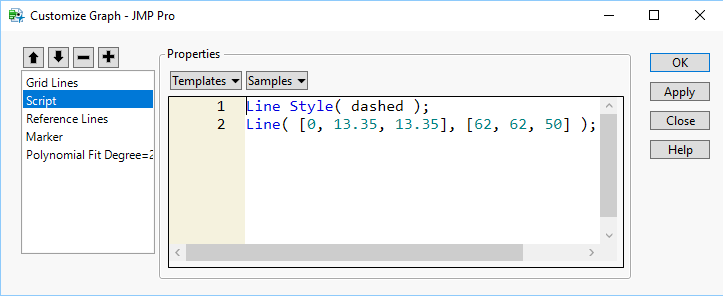

Adding to @MikeD_Anderson, the method that I have found easiest to develope the code for adding graphics to a chart in a platform, is to right click on the graph in question, and select "Custom". This allows one to modify and add to the graph in real time. I then simply click on th "+" and add a new segment

Using the Templates or Samples, or using the Scripting Editor's "Graphics Category"

one can play with the display until one has what they want.

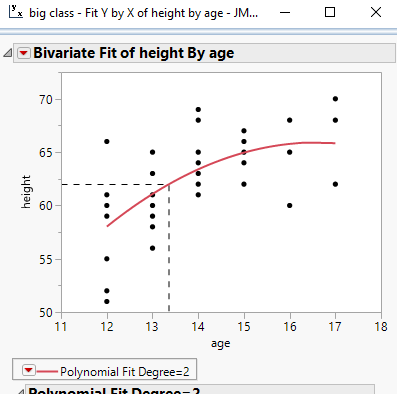

You can go to the red triangle and Save the Script

Which will give you a sample script that you can then modify to make the script generic

```
Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA\big class.jmp" );
Bivariate(
Y( :height ),
X( :age ),
Fit Polynomial( 2, {Line Color( {213, 72, 87} )} ),
SendToReport(
Dispatch(
{},
"Bivar Plot",
FrameBox,
{Add Graphics Script(
2,
Description( "Script" ),
Line Style( dashed );
Line( [0, 13.35, 13.35], [62, 62, 50] );
), Grid Line Order( 1 ), Reference Line Order( 3 )}
)
)
);
```

Jim

5 REPLIES 5

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Reference line from axis to specific value

Instead of using two reference lines from the axes, try drawing a rectangle in the graph box using a graphics script:

```
Names Default To Here( 1 );
New Window( "Example",
Graph Box(
// line color
Pen Color( "Green" );
// line width
Pen Size( 2 );
// line style (dashed)
Line Style (2);
Fill Color( "Red" );
// filled rectangle
Rect( 15, 75, 65, 55, 1 );
// unfilled rectangle (reference lines)
Rect( -1, 80, 70, -1 );
)
);
```

M

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Adding to @MikeD_Anderson, the method that I have found easiest to develope the code for adding graphics to a chart in a platform, is to right click on the graph in question, and select "Custom". This allows one to modify and add to the graph in real time. I then simply click on th "+" and add a new segment

Using the Templates or Samples, or using the Scripting Editor's "Graphics Category"

one can play with the display until one has what they want.

You can go to the red triangle and Save the Script

Which will give you a sample script that you can then modify to make the script generic

```
Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA\big class.jmp" );
Bivariate(
Y( :height ),
X( :age ),
Fit Polynomial( 2, {Line Color( {213, 72, 87} )} ),
SendToReport(
Dispatch(
{},
"Bivar Plot",
FrameBox,
{Add Graphics Script(
2,
Description( "Script" ),
Line Style( dashed );
Line( [0, 13.35, 13.35], [62, 62, 50] );
), Grid Line Order( 1 ), Reference Line Order( 3 )}
)
)
);
```

Jim

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Reference line from axis to specific value

The code below should allow you to dynamically profile any saved formula column that involves only one input. In the case of 'Big Class' and a quartic model, it gives:

It's more or less untested.

```
NamesDefaultToHere(1);
// Function to find leaves in formula that are columns in the table
// See: https://community.jmp.com/blogs/Uncharted/2015/04/03/head-arg-recurse-formula"
// Thanks to Craige Hales
findColumns =
Function( {frm, cols},
{h = Head( frm ), n = N Arg( frm ), i, result = {}}, // local variables
If( n == 0, // head node has no children, it is a leaf
If( Contains( cols, Name Expr( h ) ), // is the leaf in the list of columns?
Insert Into( result, Name Expr( h ) ); // yes -> add to result
)
,
For( i = 1, i <= n, i++, // not a leaf, get children's results
Insert Into( result, Recurse( Arg( frm, i ), cols ) )
)
);
result; // return the result
);
// Open a table to play with, and add a formula column to it
dt = Open("$SAMPLE_DATA/Big Class.jmp");
fCol = dt << New Column( "Predicted weight",
Formula(-127 + 4 * :height),
Set Property("Predicting", {:weight, Creator( "Bivariate" ), Model Name( "Polynomial Fit Degree=3" )})
);
// Recover the required information
f = fCol << getFormula;
xColList = findColumns(NameExpr(f), dt << getColumnNames);
yCol = fCol << getProperty("Predicting");
yCol = yCol[1];
// Subsequent code will only work with one x Column
xCol = Expr(xColList[1]);
for(c=1, c<=NItems(xColList), c++, Print(c); if(xColList[c] != xCol, Print("Only one x Column allowed."); Beep(); Throw()));
// Reparameterise the formula for later use in the 'GraphBox()'
SubstituteInto(f, xCol, Expr(x));
// Set the initial 'VLine()' value to the mean of the x values
xVals = xCol << getValues;
x = Mean(xVals);
// Get 'reasonable' ranges for the axes
xMin = Min(xVals);
xMax = Max(xVals);
yMin = Min(yCol << getValues);
yMax = Max(yCol << getValues);
// Get the names of the columns involved
xColName = xCol << getName;
yColName = yCol << getName;
// Plot the graph
NewWindow("Function Profile",
gb = GraphBox("Simple Profiler", XScale(xMin, xMax), YScale(yMin, yMax), XName(xColName), yName(yColName),
// Plot the function
PenColor("Red"); YFunction(f, x);
// Handle to drag the 'VLine()' and update display
Handle(x, yMin + (yMax-yMin)/10, gb << reShow, Empty());
// Get the function value for the current x value
yy = Eval(Substitute(NameExpr(f), Expr(x), x));
// Plot the lines at the new places
PenColor("Blue"); LineStyle("Dotted");
VLine(x, yMin, yy);
HLine(xMin, x, yy);
);
);
```

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Reference line from axis to specific value

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Reference line from axis to specific value

Thanks a lot, this was just what I was looking for!
