pmroz
Super User

Plotting Functions in Graph Builder

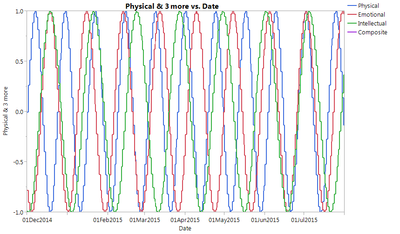

Trying to plot some functions vs date in graph builder and I get a stepped appearance.  JMP 11 or 12.  Any way to smooth out the curves?  These are bio-rhythms, by the way.


Here's the code:

dt = New Table( "BR-2015", Add Rows( 2 ),

    New Column( "Date", Numeric, Continuous, Format( "ddMonyyyy", 18 ),

        Input Format( "ddMonyyyy" ),

        Set Values( [3502915200, 3518467200] ) ),

    New Column( "Physical", Numeric, Continuous, Format( "Best", 12 ),

        Formula( bd1 = Parse Date( "01Jan1976" ); t1 = Date Difference( bd1, :Date, "Day" );

        Sin( (2 * 3.14159 * t1) / 23 ); ) ),

    New Column( "Emotional", Numeric, Continuous, Format( "Best", 12 ),

        Formula( bd2 = Parse Date( "01Jan1976" ); t2 = Date Difference( bd2, :Date, "Day" );

        Sin( (2 * 3.14159 * t2) / 28 ); ) ),

    New Column( "Intellectual", Numeric, Continuous, Format( "Best", 12 ),

        Formula( bd3 = Parse Date( "01Jan1976" ); t3 = Date Difference( bd3, :Date, "Day" );

        Sin( (2 * 3.14159 * t3) / 33 ); ) ),

    New Column( "Composite", Numeric, Continuous, Format( "Best", 12 ),

        Formula( :Physical + :Emotional + :Intellectual ) )

);

// Plot formulas as functions

dt << Graph Builder(

    Size( 739, 500 ),

    Show Control Panel( 0 ),

    Variables(

        X( :Date ),

        Y( :Physical ),

        Y( :Emotional, Position( 1 ) ),

        Y( :Intellectual, Position( 1 ) ),

        Y( :Composite, Position( 1 ) )

    ),

    Elements( Formula( X, Y( 1 ), Y( 2 ), Y( 3 ), Y( 4 ), Legend( 3 ) ) )

);

1 ACCEPTED SOLUTION

Accepted Solutions
Jeff_Perkinson
Community Manager Community Manager

Re: Plotting Functions in Graph Builder

In this case the step function is caused by your function which has a built-step at each day because of your Date Difference().

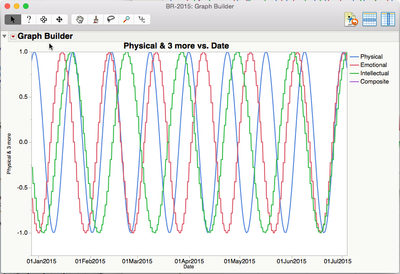

Change the increment for Date Difference to "Hour" and divide by (23*24) you'll get a smoother version. I've only done the Physical for this example.



dt =New Table("BR-2015", Add Rows(2),


    New Column( "Date", Numeric, Continuous, Format( "ddMonyyyy", 18 ),


        Input Format( "ddMonyyyy" ),


        Set Values( [3502915200, 3518467200] ) ),


    New Column( "Physical", Numeric, Continuous, Format( "Best", 12 ),


        Formula( bd1 = Parse Date( "01Jan1976" ); t1 = Date Difference( bd1, :Date, "Hour" );


        Sin( (2 * 3.14159 * t1) / (23*24) ); ) ),


    New Column( "Emotional", Numeric, Continuous, Format( "Best", 12 ),


        Formula( bd2 = Parse Date( "01Jan1976" ); t2 = Date Difference( bd2, :Date, "Day" );


        Sin( (2 * 3.14159 * t2) / 28 ); ) ),


    New Column( "Intellectual", Numeric, Continuous, Format( "Best", 12 ),


        Formula( bd3 = Parse Date( "01Jan1976" ); t3 = Date Difference( bd3, :Date, "Day" );


        Sin( (2 * 3.14159 * t3) / 33 ); ) ),


    New Column( "Composite", Numeric, Continuous, Format( "Best", 12 ),


        Formula( :Physical + :Emotional + :Intellectual ) )


);



// Plot formulas as functions


dt << Graph Builder(


    Size( 739, 500 ),


    Show Control Panel( 0 ),


    Variables(


        X( :Date ),


        Y( :Physical ),


        Y( :Emotional, Position( 1 ) ),


        Y( :Intellectual, Position( 1 ) ),


        Y( :Composite, Position( 1 ) )


    ),


    Elements( Formula( X, Y( 1 ), Y( 2 ), Y( 3 ), Y( 4 ), Legend( 3 ) ) )


);


-Jeff

View solution in original post

2 REPLIES 2
Jeff_Perkinson
Community Manager Community Manager

Re: Plotting Functions in Graph Builder

In this case the step function is caused by your function which has a built-step at each day because of your Date Difference().

Change the increment for Date Difference to "Hour" and divide by (23*24) you'll get a smoother version. I've only done the Physical for this example.



dt =New Table("BR-2015", Add Rows(2),


    New Column( "Date", Numeric, Continuous, Format( "ddMonyyyy", 18 ),


        Input Format( "ddMonyyyy" ),


        Set Values( [3502915200, 3518467200] ) ),


    New Column( "Physical", Numeric, Continuous, Format( "Best", 12 ),


        Formula( bd1 = Parse Date( "01Jan1976" ); t1 = Date Difference( bd1, :Date, "Hour" );


        Sin( (2 * 3.14159 * t1) / (23*24) ); ) ),


    New Column( "Emotional", Numeric, Continuous, Format( "Best", 12 ),


        Formula( bd2 = Parse Date( "01Jan1976" ); t2 = Date Difference( bd2, :Date, "Day" );


        Sin( (2 * 3.14159 * t2) / 28 ); ) ),


    New Column( "Intellectual", Numeric, Continuous, Format( "Best", 12 ),


        Formula( bd3 = Parse Date( "01Jan1976" ); t3 = Date Difference( bd3, :Date, "Day" );


        Sin( (2 * 3.14159 * t3) / 33 ); ) ),


    New Column( "Composite", Numeric, Continuous, Format( "Best", 12 ),


        Formula( :Physical + :Emotional + :Intellectual ) )


);



// Plot formulas as functions


dt << Graph Builder(


    Size( 739, 500 ),


    Show Control Panel( 0 ),


    Variables(


        X( :Date ),


        Y( :Physical ),


        Y( :Emotional, Position( 1 ) ),


        Y( :Intellectual, Position( 1 ) ),


        Y( :Composite, Position( 1 ) )


    ),


    Elements( Formula( X, Y( 1 ), Y( 2 ), Y( 3 ), Y( 4 ), Legend( 3 ) ) )


);


-Jeff
pmroz
Super User

Re: Plotting Functions in Graph Builder

Thanks Jeff that works great.
