Number line

[#1]

How do I create a simple elementary school type number line in JMP?  I'd like to plot numbers such as 0.8, 0.9, 0.92, 0.94 on a number line.  I've created a chart, using data statistics with the horizontal & point chart options--how do I get rid of the Y axis so the values will be plotted on the X axis only?

[#2]

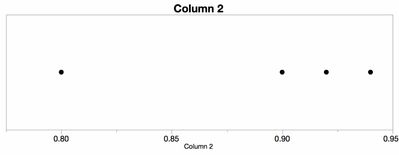

Try graph builder, just drag your column to the x-axis.

[#3 · Accepted solution]

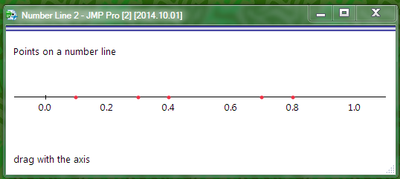

same idea, using JSL.  Looks sharp if the graph background matches the window background.

Making Anonymous Graphs in JMP 8 - JMP Blog has some secrets for removing extra lines and text from a graph, reused here.

JMP 11 lets the vertical axis be very short, which helps the appearance.  Two reference lines, both at zero, look like axes.

dt = New Table( "Untitled", New Column( "x", Set Values( [0.1, 0.8, 0.7, 0.3, 0.4] ) ) );
xvals = dt:x << get values;
yvals = J( N Rows( xvals ), 1, 0 );
New Window( "Number Line",
    BorderBox(left(10),top(10),right(10),bottom(10), vlistbox(
    Text Box( "Points on a number line" ),
    Spacer Box( size( 10, 50 ) ),
    g = Graph Box( Frame Size( 500, 7 ),
        X Scale( -0.1, 1.1 ), Y Scale( -1, 1 ),
        yname( " " ), Marker Size( 2 ),
        yaxis( show major ticks( false ), show minor ticks( false ),
            show labels( false ), Inside Ticks( 1 ),
            Add Ref Line( 0.0, Solid, "Black", "", 1 ) ),
        xaxis( show major ticks( false ), show minor ticks( false ),
            show labels( true ), Add Ref Line( 0.0, Solid, "Black", "", 1 ),
            Inside Ticks( 1 ) ),
        Marker( Combine States( Marker State( 12 ),color state("red") ), xvals, yvals )
    ),
    Spacer Box( size( 10, 50 ) ),
    Text Box( "drag with the axis" )
    ))
);
// http://blogs.sas.com/content/jmp/2008/11/10/making-anonymous-graphs-in-jmp-8/
g[axis box( 1 )] << remove axis label;
g[axis box( 2 )] << remove axis label;
// hide the inner border
g[frame box( 1 )] << Left( 0 ); // no line on left, etc
g[frame box( 1 )] << Right( 0 );
g[frame box( 1 )] << top( 0 );
g[frame box( 1 )] << bottom( 0 );
// shrink and hide the outer border too
g[Border Box( 1 )] << Left( 0 ); // no space on left, etc
g[Border Box( 1 )] << Right( 0 );
g[Border Box( 1 )] << Top( 0 );
g[Border Box( 1 )] << bottom( 0 );
g[Border Box( 1 )] << sides( 0 ); // draw no sides (1+2+4+8 would be all four sides)
