Making Bezier Curves using SVG Path Strings

[#1]

I have two SVG Paths which are constructed in the same way.

a = "M 10 60 C 20 80 40 80 50 60";
b = "M 0 -150 C 82.8 -150 150 -82.8 150 0";

A quick Plot of 'a' shows the following arc

New Window( "JMP 8PFU Layout Example",
	Graph Box(
		frameSize( 500, 500 ),
		xScale(-175,175),
		yScale(-175,175),
		penColor("blue");
		penSize(2);
		path(a, 0);
	);
);

However when I try to plot 'b' I get an error

DisplayBox[EvalContextBox]
argument value is invalid in access or evaluation of 'Path' , Bad Argument( b ), Path/*###*/(b, 0)

New Window( "JMP 8PFU Layout Example",
	Graph Box(
		frameSize( 500, 500 ),
		xScale(-175,175),
		yScale(-175,175),
		penColor("blue");
		penSize(2);
		path(combined, 0);
	);
);

If I add a 'closing' character 'z' in the curve it draws the segment, returning the 'line' to the origin point. This works but is not what I want - I just want the arc.

b = "M 0 -150 C 82.8 -150 150 -82.8 150 0 z";

My Ultimate goal is to combine 4 arcs to approximate a circle

tr = "M 0  150 C  82.8  150  150  82.8  150 0 z";
br = "M 0 -150 C  82.8 -150  150 -82.8  150 0 z";
bl = "M 0 -150 C -82.8 -150 -150 -82.8 -150 0 z";
tl = "M 0  150 C -82.8  150 -150  82.8 -150 0 z";

combined = "M 0  150 C  82.8  150  150  82.8  150 0 z M 0 -150 C  82.8 -150  150 -82.8  150 0 z M 0 -150 C -82.8 -150 -150 -82.8 -150 0 z M 0  150 C -82.8  150 -150  82.8 -150 0 z";

New Window( "JMP 8PFU Layout Example",
	Graph Box(
		frameSize( 500, 500 ),
		xScale(-175,175),
		yScale(-175,175),
		penColor("blue");
		penSize(2);
		path(combined, 0);
	);
);

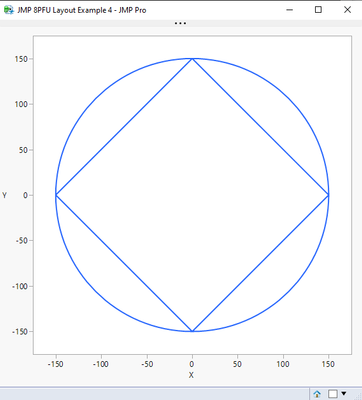

Again, when I remove the 'z' character I get the same error.

For completeness, I tried this combined string in a web-browser with the 'z' characters removed and it rendered correctly

<svg viewBox="-175 -175 350 350" style="border: green solid;">

<path id="Wrf_Edge" stroke="black" fill="none" stroke-width="1" d="M 0  150 C  82.8  150  150  82.8  150 0 M 0 -150 C  82.8 -150  150 -82.8  150 0 M 0 -150 C -82.8 -150 -150 -82.8 -150 0 M 0  150 C -82.8  150 -150  82.8 -150 0"/>

</svg>

[#2]

For me this seems to work fine, using JMP16.2 Pro and Windows 10 (version related?)

Names Default To Here(1);

tr = "M 0  150 C  82.8  150  150  82.8  150 0";
br = "M 0 -150 C  82.8 -150  150 -82.8  150 0";
bl = "M 0 -150 C -82.8 -150 -150 -82.8 -150 0";
tl = "M 0  150 C -82.8  150 -150  82.8 -150 0";

New Window("JMP 8PFU Layout Example",
	Graph Box(
		frameSize(500, 500),
		X Scale(-175, 175),
		Y Scale(-175, 175),
		Pen Size(2);
		Pen Color("blue");
		Path(tr, 0);
		Pen Color("red");
		Path(br, 0);
		Pen Color("green");
		Path(tl, 0);
		Pen Color("red");
		Path(bl, 0);
	)
);

(with Graph Box I would use Eval Insert so the Customize will show correct information on right click menu)

[#3]

Thats weird Jarmo. I'm using 15.2.0. Did you try it using the combined string?

Ultimately, I'll be making many SVG strings and saving them in a DB Table for app developers to use. Incidentally this circle represents the circumference of a wafer. As a result I need just one string which works for all development environments. For JMP applications I do not want to use four distinct arcs, but rather just one string to avoid duplication in the DB.

I hope this makes sense.

BTW, I literally re-started JMP and copied/Pasted you code into a script with no modification and it still creates this error. I'll try another JMP version.

[#4]

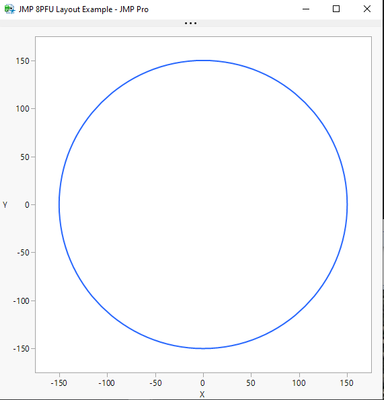

I did try it also with the combined string (copy pasted from the browser snippet), worked fine:

Names Default To Here(1);


New Window("JMP 8PFU Layout Example",
	Graph Box(
		frameSize(500, 500),
		X Scale(-175, 175),
		Y Scale(-175, 175),
		Pen Size(2);
		Pen Color("blue");
		Path("M 0  150 C  82.8  150  150  82.8  150 0 M 0 -150 C  82.8 -150  150 -82.8  150 0 M 0 -150 C -82.8 -150 -150 -82.8 -150 0 M 0  150 C -82.8  150 -150  82.8 -150 0", 0);
	)
);

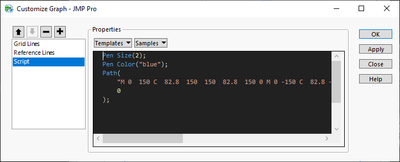

Have you tried modifying the Customize part of the Graph Box? Or maybe using Eval Insert to add the string to Path() (not sure why it would be needed though...)

[#5]

No Jarmo, I didn't use the eval/insert. I'll give it a go later when I get a minute.

As an aside, I didn't need to make four Bezier Arcs to generate a circle. SVG has an 'A' (Arc) tag than can draw one with far less characters....and is much easier to comprehend as it doesn't need to generate any Bezier 'Control points'

I did need to add the 'double 0' at the end of the string to get it to work though as with the other example above.

"M -150 0 a 150 150 0 1 0 300 0 a 150 150 0 1 0 -300 00"

Comparing SVG ARC, SVG Bezier Curves and the native 'Circle' Function in JMP they all approximate pretty well.

circleArcSyntax = "M -150 0 a 150 150 0 1 0 300 0 a 150 150 0 1 0 -300 00";
circleCurveSyntax = "M 0  150 C  82.8  150  150  82.8  150 00 M 0 -150 C  82.8 -150  150 -82.8  150 00 M 0 -150 C -82.8 -150 -150 -82.8 -150 00 M 0  150 C -82.8  150 -150  82.8 -150 00";
New Window( "JMP Circle Layout Example",
	Graph Box(
		frameSize( 500, 500 ),
		xScale(-175,175),
		yScale(-175,175),

		penSize(20);
		penColor("yellow");
		path(circleArcSyntax, 0);

		penColor("red");
		penSize(10);
		path(circleCurveSyntax, 0);

		penSize(2);
		penColor("black");
		circle({0,0}, 150);
	);
);

SVG ARC = Yellow

SVG 4-segment Bezier Curve = Red

JMP 'Circle' Function = Black.

[#6]

Hmmm, it looks like JMP (only tested on 15.2.0) doesn't like the last character if it is a '0'. If I set it to another value or 'double-up' on the '0' making it '00' then it works fine. so the string:

"M 0 150 C 82.8 150 150 82.8 150 0"

becomes

"M 0 150 C 82.8 150 150 82.8 150 00"

circle = "M 0  150 C  82.8  150  150  82.8  150 00 M 0 -150 C  82.8 -150  150 -82.8  150 00 M 0 -150 C -82.8 -150 -150 -82.8 -150 00 M 0  150 C -82.8  150 -150  82.8 -150 00";
New Window( "JMP Layout Example",
	Graph Box(
		frameSize( 500, 500 ),
		xScale(-175,175),
		yScale(-175,175),
		penColor("blue");
		penSize(2);
		path(circle, 0);
	);
);

[#7]

I can confirm that it fails on JMP14 as well.  One thing that you can do is to construct the Bezier curves back-to-front like below (it only requires one MOVE command, as the ending point of each C is the beginning point of the next)

circle = "M 0,150 C 82.8,150  150,82.8  150,0 C 150,-82.8 82.8,-150 0,-150 C -82.8,-150 -150,-82.8 -150,0 C -150,82.8 -82.8,150 0,150 z";

New Window( "JMP Layout Example",
	Graph Box(
		frameSize( 500, 500 ),
		xScale(-175,175),
		yScale(-175,175),
		penColor("blue");
		penSize(2);
		path(circle , 0);
	);
);
