Issue with X-Axis Label Formatting in Control Chart Builder – JMP Version 19

[#1]

Hi JMP Users,
I'm encountering an issue in JMP version 19 that wasn't present in version 18. In the Control Chart Builder, the X-axis label formatting used to display intervals correctly in version 18. However, in version 19, the labels are repeating instead of showing the expected interval format.
I've attached comparison graphs from both versions for your reference to highlight the difference.
If there's a workaround or a setting that can resolve this issue in version 19, please let me know.

[#2]

Hi @JMP_Users ,

This appears to be a change in v19, I haven't managed to find a way around this - I would suggest you email support@jmp.com to let them know and they can help/log the issue.

Thanks,

Ben

[#3 · Accepted solution]

Thanks Ben...!

     Got it.

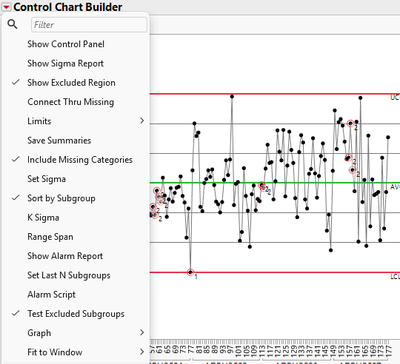

     By clicking "Sort by Subgroup" Option.

[#4]

As mentioned above, this behavior is due to the fact that Sort by Subgroup is no longer turned on by default in Control Chart Builder in JMP 19.

This changes the default order of the horizontal axis when there is a subgroup variable.

If you have concerns with this new default behavior, you could certainly post to the JMP Wishlist to ask for the default behavior to be reverted in a future version of JMP.
