How to change "quantiles distribution" Summary Page

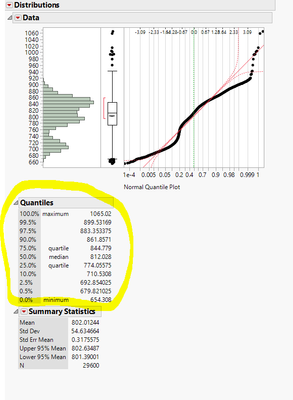

How to change "quantiles distribution" Summary Page marked yellow. from current summary to a new one (summary use 1% a step), then can get more detailed distribution.






1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted
txnelson
Super User

Re: How to change "quantiles distribution" Summary Page

By golly, there is an option to do this.  Click on the red triangle and go to

      Display Options==>Set Quantile  Increment

Enter in .01, and you will get the results you want.

Thanks for the response.....it made me look.......one learns something new about JMP every day

Jim

View solution in original post

4 REPLIES 4
Highlighted
txnelson
Super User

Re: How to change "quantiles distribution" Summary Page

The below script works, but there is an option under the red triangle

     Display Options==>Set Quantile Increment

Here is an example on how to do that


Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA\semiconductor capability.JMP" );

dis = dt << Distribution( Continuous Distribution( Column( :NPN1 ) ) );

percentiles = {};
knowns = {};
values = {};

For( i = 100, i >= 0, i--,
	Insert Into( percentiles, Format( i / 100, "Percent", 6, 1 ) );
	If(
		i == 100, Insert Into( knowns, "maximum" ),
		i == 75, Insert Into( knowns, "quartile" ),
		i == 50, Insert Into( knowns, "median" ),
		i == 25, Insert Into( knowns, "quartile" ),
		i == 0, Insert Into( knowns, "minimum" ),
		Insert Into( knowns, "" )
	);
	Insert Into( values, Col Quantile( :NPN1, i / 100 ) );
);

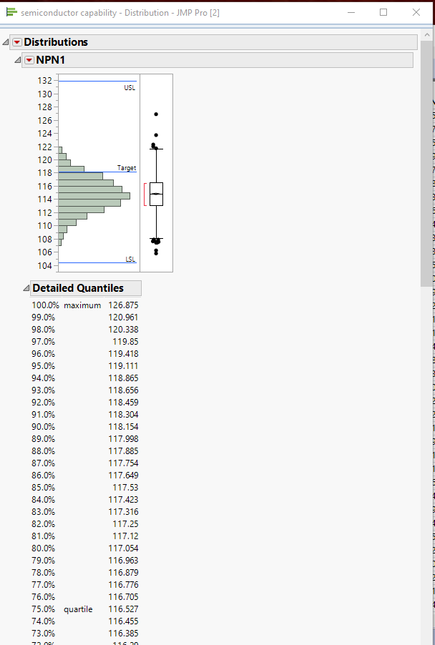

newTableBox = Outline Box( "Detailed Quantiles",
	Table Box(
		String Col Box( "", percentiles ),
		String Col Box( "", knowns ),
		Number Col Box( "", values )
	)
);

report( dis )["Quantiles"] << Append( newTableBox );
report( dis )["Quantiles"] << delete;







Jim
Highlighted
qspringleaf
Level III

Re: How to change "quantiles distribution" Summary Page

thanks for suggestion, do have tips that work by changing setting instead of script? many thanks
Highlighted
txnelson
Super User

Re: How to change "quantiles distribution" Summary Page

By golly, there is an option to do this.  Click on the red triangle and go to

      Display Options==>Set Quantile  Increment

Enter in .01, and you will get the results you want.

Thanks for the response.....it made me look.......one learns something new about JMP every day

Jim

View solution in original post

Highlighted
qspringleaf
Level III

Re: How to change "quantiles distribution" Summary Page

thanks, it works well.
