Hello

I was wondering if there is a way in JMP that I could use to take raw data of multiple measurement points (each with an X, Y, Z component) and best fit this data to form a best fit plane. Basically my intent is to take raw metrology data off of OMMs/CMMs and fit them myself without the use of CMM/OMMs measurement software.

Thanks for your help!

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

I used **ax + by + cz = d** as a starting point to generate some slightly random data like this:

dt = New Table( "Untitled",

Add Rows( 20 ),

New Table Variable( "a", 5 ),

New Table Variable( "b", 7 ),

New Table Variable( "c", 11 ),

New Table Variable( "d", 13 ),

New Column( "x", Formula( Random Uniform() * 10 ) ),

New Column( "y", Formula( Random Uniform() * 10 ) ),

New Column( "z", Formula( Random Normal() / 2 + (:d - (:a * :x + :b * :y)) / :c ) )

);

which makes Z a function of X and Y, approximately on the plane defined by A, B, C, D.

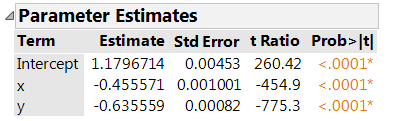

Next, use Analyze->Fit Model and put in Z as the Y (response) and ADD X and Y to the model effects. Click Run. The parameter Estimates are what I think you are looking for. I get this, for my random numbers:

to convert these back to the A=5, B=7, C=11, D=13 form, rearrange the formula as

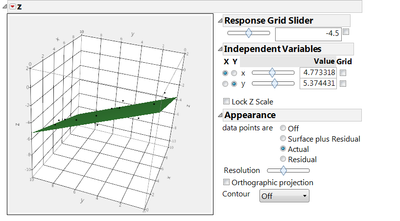

and see d/c is 13/11 is 1.1818 (close to 1.179) a/c is 5/11 is .4545 (close to .4555) and b/c is 7/11 is .6363 (close to .6355). Watch the signs. You can see the surface in the Fit Least Squares window; red triangle menu->Factor Profiling->Surface Profiler. Under Appearance turn on the Actual points.
