Hi, im new to the jmp scripting language. The code below works(it shows bar graphs of the column 3 to n) but there is one thing i'd want to do. How do i script such that my output should be a stacked bar chart of all columns?

for(i=3,i<=NItems(colList2),i++,

gb= dt4 << Graph Builder(

Size(534,454),

Show Control Panel(0),

Variables(

X(:Label),Y(eval(Column(dt4,colList2[i]))),

),

Elements(Bar(X,Y))

));

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

There is not a single statement that can be expanded on to cover a different number of incoming Y columns. Therefore, you need to take the basic form, and dynamically create it depending upon the number of columns

Here is the basic form

```
Graph Builder(
Size( 534, 450 ),
Show Control Panel( 0 ),
Variables(
X( :SITE ),
Y( :NPN1 ),
Y( :PNP1, Position( 1 ) ),
Y( :PNP2, Position( 1 ) ),
Y( :NPN2, Position( 1 ) ),
Y( :PNP3, Position( 1 ) )
),
Elements(
Bar(
X,
Y( 1 ),
Y( 2 ),
Y( 3 ),
Y( 4 ),
Y( 5 ),
Legend( 4 ),
Bar Style( "Stacked" )
)
)
);
```

Here is the Example script that I created that dynamically builds a stacked bar chart

```
names default to here(1);
dt=open("$SAMPLE_DATA/Blood Pressure.jmp");
// Get all of the continuous data columns
colList = dt << get column names(continuous,string);
// Create the JSL to create the script
theExpr = "Graph Builder(
Size( 534, 450 ),
Show Control Panel( 0 ),
Variables(
X( :Dose ),";
// Add the first Y entry
theExpr = theExpr || "Y( :" || colList[1] || " )";
// Add the remaining Y entries
For( i=2, i<= n items(colList), i++,
theExpr = theExpr || ", Y( :" || colList[i] || ", Position( 1 ) )";
);
// Finish up the Variables list, and start the Elements
theExpr = theExpr || "), Elements( Bar(X, Y( 1 )";
// Add the remaining Y elements
For( i=2, i<= n items(colList), i++,
theExpr = theExpr || ", Y( " || char(i) || " )";
);
// Finish up the required specifications
theExpr = theExpr || ",
Legend( 4 ),
Bar Style( \!"Stacked\!" )
)
)
);";
// Run the created JSL
eval(parse(theExpr));
```

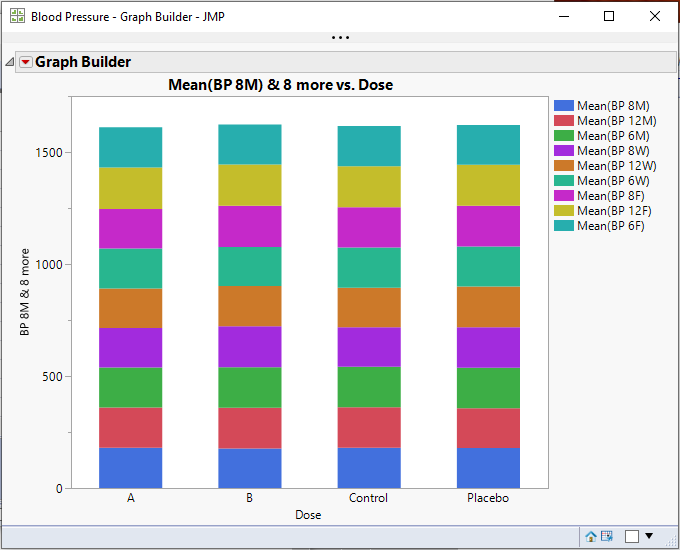

That produces

Jim
