Graph Builder Bar Charts

[#1]

Hello everybody,

I would like to visualize data in a bar chart. I´ve got defined values for the start point and the range (length) of every bar. See files attached.

Is it possible to visualize data like that?

Thanks in advance.

Johannes

[#2 · Accepted solution]

Hi @JohannesENS

please find attached and run the script in the table.

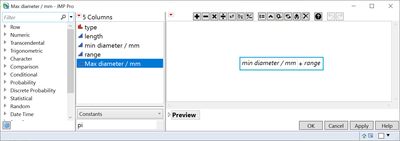

one way of doing this is by introducing a new column with the formula :"min diameter / mm"n + :range

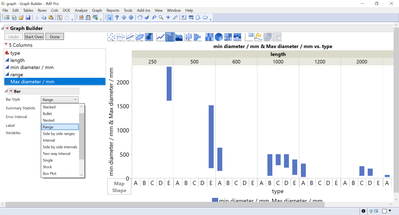

now you set the min diameter and the max diameter together on the Y axis. then you choose bars and select the range option


let us know if it worked,

ron

[#3]

Thank you!
