Fit Y by X -> plot -> Matching colum. Question: how highlight (differently) matching points (eg, with White circle and Black circle)?

Medicc

Community Trekker

Joined:

Mar 29, 2016

Fit Y (temperature) by X (two groups) -> got plot -> then I make “Matching colum” (I have colum: 0-survival patients, 1- dead)-> now I want highlight the survival patients with White Circle marker and died with Black circle. How to do it on plot? (I can do it in the data table, but do not know how to do it on graph.) Thanks!

1 ACCEPTED SOLUTION

Accepted Solutions
Solution

So now all you have to do is to create the graph.  Rt mouse click on the graph and select Row Legend


Select the Indicator column.


Right Mouse Click on the value in the Row State box, and change the colors and the markers to what you want, and then repeat the process for the second value of Indicator.



Jim
4 REPLIES
txnelson

Super User

Joined:

Jun 22, 2012

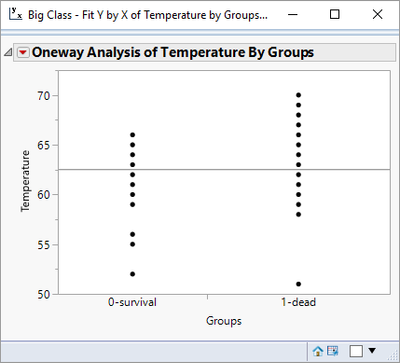

If I am understanding your question, you have a plot like the following:


And you want to color all of the 0-survival points one color and all of the 1-dead points a different color.

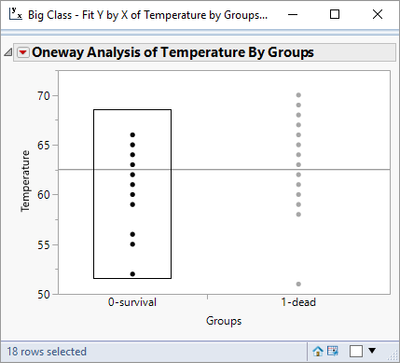

All you have to do, is to click on your mouse and drag it across all of the points you want to be grouped together for coloring, and then rt mouse click on one of the selected points and select Row Colors, and then select the color you want.  If you want a different marker, repeat the rt mouse click and choose Row Markers.

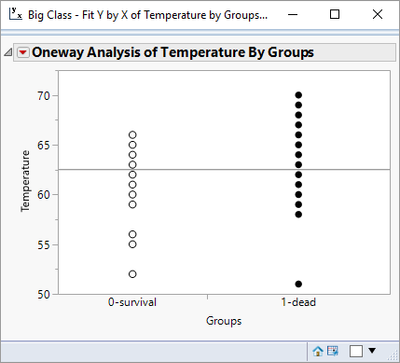

Repeat the operation for the 1-dead grouping and you will get the following chart


Jim
Medicc

Community Trekker

Joined:

Mar 29, 2016

Jim, thank you for the really useful information for me and I'm sorry that not clear written! I mean something other:

There are three columns:

1) Temperature

2) Group (disease1 and disease2) and

3) Indicator (alive -0, dead-1), so alive and dead can be in both groups!!!

Fit Y (temperature) by X (two groups: disease1 and disease2) -> got plot -> then I make “Matching colum” (I have indicator colum: 0-alive patients, 1- dead patients)-> now I want highlight the survival patients with White Circle marker and died with Black circle. How to do it on plot? (I can do it in the data table, but do not know how to do it on graph.) Thanks!

Solution

So now all you have to do is to create the graph.  Rt mouse click on the graph and select Row Legend


Select the Indicator column.


Right Mouse Click on the value in the Row State box, and change the colors and the markers to what you want, and then repeat the process for the second value of Indicator.



Jim
Medicc

Community Trekker

Joined:

Mar 29, 2016

Dear Jim, Thank You for your kindness and so clear explanation!
