Hi,

How do I create plots with error bars based on "Fit y by x", Graph builder, other?

The question may  refer to two ways to achieve the plots:

1. The error bars can be derived from explicitly from the data by creating columns of means, upper/lower errors, from which the plots are created, for e.g. time dependent data.

2. From the raw data by grouping several variables (columns) from which the means and STD/SDE are calculated (per row) and subsequently are used to create the Y by X plot ()means with the error bars (STD/SDE).

I have seen some examples using the Graph Builder using Bar format as intermediate stage, however, it seem not to work for me.

Thanks,

 - Dean

[#2]

What do you mean by "it seem not to work for me" so what have you already tried? Bar chart for example has many different options you can use

https://www.jmp.com/support/help/en/18.0/index.shtml#page/jmp/bar.shtml#

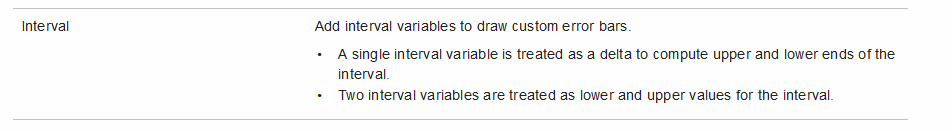

There is also the Interval zone

https://www.jmp.com/support/help/en/18.0/index.shtml#page/jmp/graph-zones.shtml#


[#3]

Hi jthi and thanks.

I was referring for instance to the following sources:

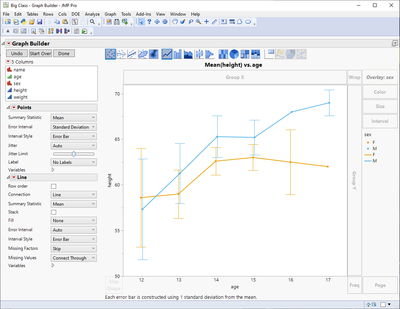

https://community.jmp.com/t5/JMPer-Cable/How-to-create-custom-error-bars-in-Graph-Builder/ba-p/35611

https://community.jmp.com/t5/Discussions/X-and-Y-error-bars-in-X-Y-Plot/td-p/36135

for implementations that haven't worked for me (or I am missing some intermediate steps in he process).

Thanks again,

 - Dean

[#4]

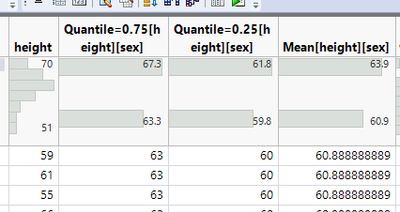

I have added three column to JMP's sample data Big Class (0.25, 0.75 quantile and mean)

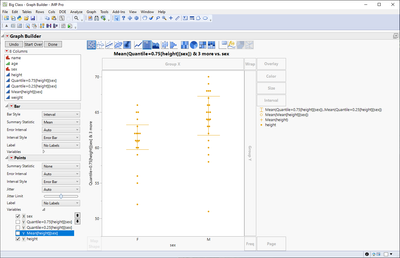

By using Interval bar chart I can get plot like this (I left the points there for visualization purposes)


[#5]

The error bar or interval estimate is usually an option in a red triangle (context) menu. Click the red triangle to the left of the fit under the scatter plot in Bivariate (Fit Y by X). You can select dotted lines or regions for the confidence or prediction interval.

See the Essential Graphing guide for similar instructions when using Graph Builder.

[#6]

Thanks Mark.

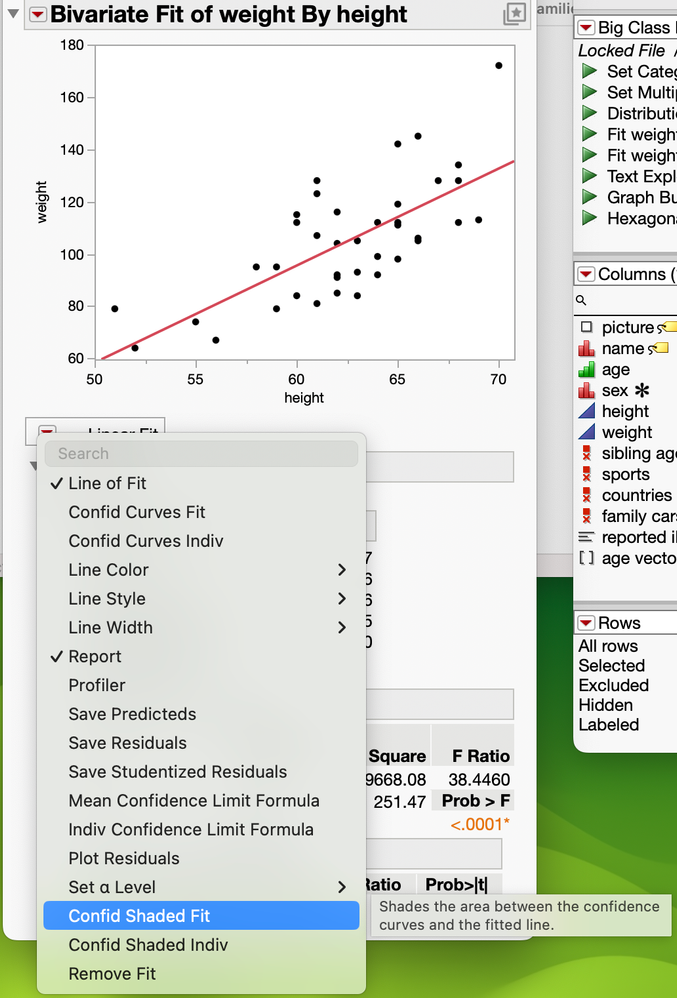

following your reply were in the drop down menu from the red triangle:


can I insert/add error bars?

How/where do I implement what you mentioned "You can select dotted lines or regions for the confidence or prediction interval" for the above bivariant figure?

Thanks,

 - Dean

[#7]

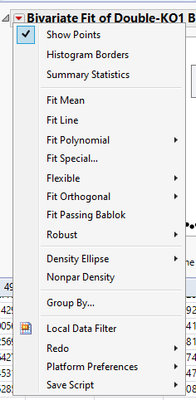

It is the red triangle under the plot for the desired fit:

Screenshot 2024-07-03 at 5.46.01 PM.png

[#8]

Thanks Mark,

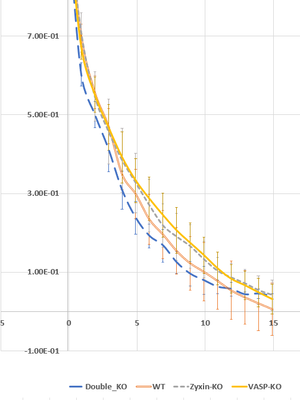

To make it clear what I aim at looks like the following (created in Excel):


For sync, each exponentially decreasing line represents the mean for each of four groups (Legend) as a function of time (x-axis), and their corresponding Stds/ as the vertical lines. Simple... easily implemented via python's matplotlib package or alike, MATLAB, excel...

How to create such a figure from Fit Y by X, Graph Builder?

Thanks,

 - Dean

[#9]

If you can share your dataset it makes it easier to demonstrate.

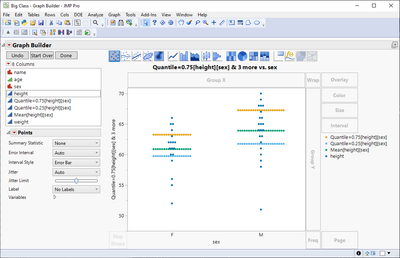

Here is one example using JMP's Big Class data table


https://www.jmp.com/support/help/en/18.0/#page/jmp/element-types-and-options.shtml

https://www.jmp.com/support/help/en/18.0/#page/jmp/points.shtml#

https://www.jmp.com/support/help/en/18.0/#page/jmp/line.shtml#

[#10]

Hi  jhti,

I have attached a dataset.

thanks,

 - Dean
