Change Single Bar Color

[#1]

Hi All,

I have a seemingly simple question that I cannot find the answer to. I have made a bar graph and would like to custimze the each bar graph fill color individually. The graph is cost on y axis and car make on x axis, with each car make having two years. The reason is I have a general fill color depending on the year (2017&2018), but would like to highlight certain car make a different color (for example Honda 2017 would be different from the rest of the 2017 car makes, and Honda 2018 would be different from the rest of the 2018 car makes).

Is there a way to do this easily on either graph builde or thorugh code?

Thanks in advance.

[#2 · Accepted solution]

One solution is to create a new column which is the concatenation of your Year and Car columns
combine = char(:year) || " " || :car;

Then use this new column as the color column in your Graph Builder. You can then make each individual bar whatever colors you want them to be.  Below is a similar example using the Big Class sample data table

[#3 · Accepted solution]

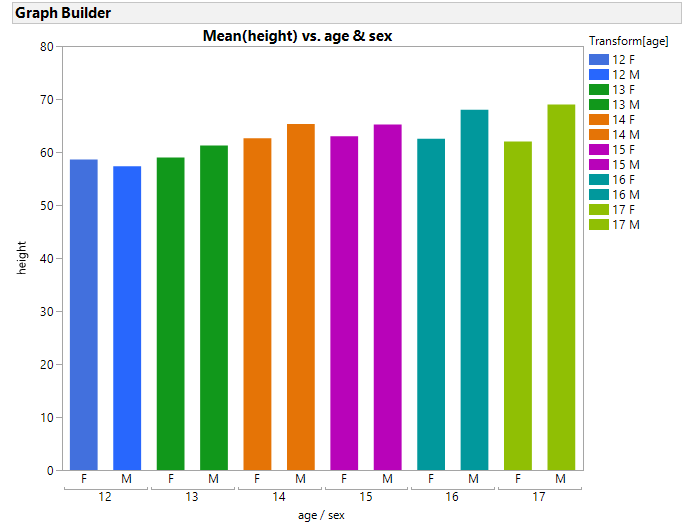

The script below extends Jim's,  @txnelson, excellent suggestion, demonstrating how to  set specific colors using JSL to modify the Legend Model.

Names Default to Here(1);

dt = open("$sample_data/big class.jmp");

gb = dt << Graph Builder(
    show control panel(0),
	Variables(
		X( :age ),
		X( :sex, Position( 1 ) ),
		Y( :height ),
		Color(
			Transform Column(
				"Transform[age]",
				Character,
				Nominal,
				Formula( (Char( :age ) || " ") || :sex )
			)
		)
	),
	Elements( Bar( X( 1 ), X( 2 ), Y, Legend( 12 ) ) )
);

//note Item ID count begins with 0

gb << 	SendToReport(
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				//12,
				Properties( 0, {Fill Color( 5 )}, Item ID( "12 F", 1 ) ),
				Properties( 1, {Fill Color( 5 )}, Item ID( "12 M", 1 ) ),
				Properties( 2, {Fill Color( 20 )}, Item ID( "13 F", 1 ) ),
				Properties( 3, {Fill Color( 20 )}, Item ID( "13 M", 1 ) ),
				Properties( 4, {Fill Color( 6 )}, Item ID( "14 F", 1 ) ),
				Properties( 5, {Fill Color( 6 )}, Item ID( "14 M", 1 ) ),
				Properties( 6, {Fill Color( 27 )}, Item ID( "15 F", 1 ) ),
				Properties( 7, {Fill Color( 27 )}, Item ID( "15 M", 1 ) ),
				Properties( 8, {Fill Color( 26 )}, Item ID( "16 F", 1 ) ),
				Properties( 9, {Fill Color( 26 )}, Item ID( "16 M", 1 ) ),
				Properties( 10, {Fill Color( 12 )}, Item ID( "17 F", 1 ) ),
				Properties( 11, {Fill Color( 12 )}, Item ID( "17 M", 1 ) )
			)}
		)
	);

[#4]

Sometimes I have the same issue.

With 6 elements in column A and 2 elements in column B, it's still fun to color the 6x2 distinct subsets manually.

But there are other cases where it takes a while to manually assign the correct colors.

application case:
- use column A as color

- use column B = excluded() to give excluded points a grey color

Fur such applications, GraphBuilder: Overwrite Dropzone could be a powerful feature.
