Capability in Graph Builder

[#1]

I have been asked this question multiple times, but is there a way to show capability analysis in the Graph Builder?   I found where it can show a 5 number summary,  but no where can I figure out how to get it to show the capability.  Even have the Cpk or Ppk as an option to show?   I cannot seem to find this, is it possible?

I am using JMP Pro 16.0.

[#2 · Accepted solution]

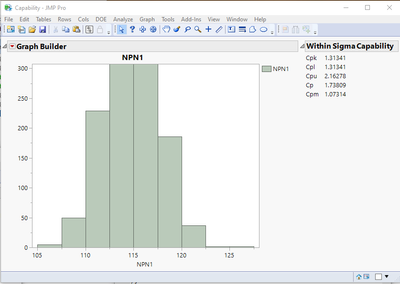

Here are 2 different ways to add th capability to the Graph Builder

Names Default To Here( 1 );

// Open Data Table: semiconductor capability.jmp
// → Data Table( "semiconductor capability" )
dt = Open( "$SAMPLE_DATA/semiconductor capability.jmp" );

nw = New Window( "Capability", hlb = H List Box() );
hlb << append(
	Graph Builder(
		Size( 528, 454 ),
		Show Control Panel( 0 ),
		Variables( X( :NPN1 ) ),
		Elements( Histogram( X, Legend( 7 ) ) )
	)
);
dis = Distribution(
	invisible,
	Continuous Distribution(
		Column( :NPN1 ),
		Process Capability( Use Column Property Specs )
	)
);
hlb << append(
	Outline Box( "Within Sigma Capability", tb = Table Box() )
);
tb << append(
	String Col Box( "",
		Eval(
			Report( dis )["Within Sigma Capability"][
			String Col Box( 1 )] << get
		)
	)
);
tb << append(
	Number Col Box( "",
		Eval(
			Report( dis )["Within Sigma Capability"][
			Number Col Box( 1 )] << get
		)
	)
);

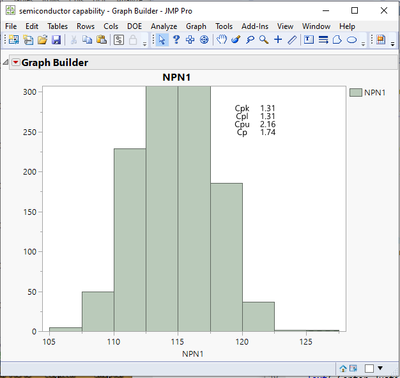

Names Default To Here( 1 );

// Open Data Table: semiconductor capability.jmp
// → Data Table( "semiconductor capability" )
dt = Open( "$SAMPLE_DATA/semiconductor capability.jmp" );
dis = Distribution(
	invisible,
	Continuous Distribution(
		Column( :NPN1 ),
		Process Capability( Use Column Property Specs )
	)
);
gb = Graph Builder(
	Size( 528, 454 ),
	Show Control Panel( 0 ),
	Variables( X( :NPN1 ) ),
	Elements( Histogram( X, Legend( 7 ) ) )
);


textlist = (Report( dis )["Within Sigma Capability"][String Col Box( 1 )] << get
);
statlist = (Report( dis )["Within Sigma Capability"][Number Col Box( 1 )] << get
);

Report( gb )[framebox( 1 )] <<
add graphics script(
	Text( Center Justified, {120, 275}, textlist[1] );
	Text(
		Center Justified,
		{122, 275},
		Format( statlist[1], "Fixed Dec", 4, 2 )
	);
	Text( Center Justified, {120, 265}, textlist[2] );
	Text(
		Center Justified,
		{122, 265},
		Format( statlist[2], "Fixed Dec", 4, 2 )
	);
	Text( Center Justified, {120, 255}, textlist[3] );
	Text(
		Center Justified,
		{122, 255},
		Format( statlist[3], "Fixed Dec", 4, 2 )
	);
	Text( Center Justified, {120, 245}, textlist[4] );
	Text(
		Center Justified,
		{122, 245},
		Format( statlist[4], "Fixed Dec", 4, 2 )
	);
);

[#3]

Thank you! I will try this.

[#4]

Hi,

is there are a way to import this to power point? I would like to have a graph builder and cpk and then import it to ppt. Thanks.

[#5]

Few options below

• You can use select tool and then copy paste it to Powerpoint
• you can right click and use Copy Graph
• You can use use File menu and save it as Powerpoint

[#6]

Hi,

I'm trying to have the cpk and the GB on the same window and the way you have provided does exactly that. The problem is when I try to export it to ppt, it prints the cpk and GBin two different slides. Would you know a way to make them both in the same slide? Thanks.

[#7]

When you save to a .ppt, JMP automatically creates a separate slide for the 2 Outline boxes, "Graph Builder" and "Within Sigma Capability".

I think you can group the 2 together under a new Outline box.  I have not tested this, but it is worth a try.

Change the New Window line to

nw = New Window( "Capability", outline box( "Capability Output", hlb = H List Box() ) );

[#8]

Thank you Jim. Unfortunately its not working as intended. It still spits out two windows. The difference now is that there are a line at the bottom with the graph builder title. Do you have any recommendations? thanks.

[#9]

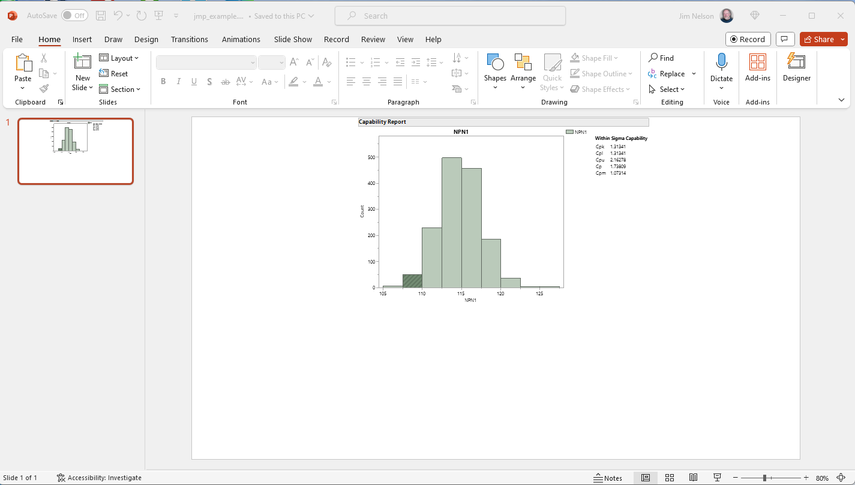

I tried several techniques and failed with all of them.  I then reverted to a method that I have used several time.  Basically the display is organized as desired, and then it is made into a picture object, and that object is added to an output box() in a new window.  Because the picture object is a single object, it is displayed on one slide

Names Default To Here( 1 );

// Open Data Table: semiconductor capability.jmp
// → Data Table( "semiconductor capability" )
dt = Open( "$SAMPLE_DATA/semiconductor capability.jmp" );

nw = New Window( "Capability", hlb = H List Box() );
hlb << append(
	gb = Graph Builder(
		Size( 528, 454 ),
		Show Control Panel( 0 ),
		Variables( X( :NPN1 ) ),
		Elements( Histogram( X, Legend( 7 ) ) )
	)
);
dis = Distribution(
	invisible,
	Continuous Distribution(
		Column( :NPN1 ),
		Process Capability( Use Column Property Specs )
	)
);

nw2 = New Window( "Graph", vlb = V List Box() );
ob = Outline Box( "Capability Report", hlb2 = H List Box() );
hlb2 << append( Report( gb )["Graph Builder", List Box( 1 )] );
hlb2 << append(
	Lineup Box( N Col( 1 ),
		Spacer Box( size( 1, 15 ) ),
		txb = Text Box( "Within Sigma Capability" ),
		tb = Table Box()
	)
);
txb << set font style( "Bold" );
tb << append(
	String Col Box( "",
		Eval(
			Report( dis )["Within Sigma Capability"][String Col Box( 1 )] << get
		)
	)
);
tb << append(
	Number Col Box( "",
		Eval(
			Report( dis )["Within Sigma Capability"][Number Col Box( 1 )] << get
		)
	)
);
vlb << append( ob << get picture );
nw2 << Save Presentation( "$TEMP/jmp_example.pptx" );
Open( "$TEMP/jmp_example.pptx" );

[#10]

Thank you very much Jim! I appreciate your help. My notification is off, so I just saw your reply.

I will try it and let you know how it goes.
