Add text annotation on the Graph Builder

[#1]

Hello,
Is there a way to write a graphics script to add text annotation to each reticles on the wafer map?
Additionally, I want to color two columns - 'Ret' and '%Fail', create a heat map with %Fail col and overlay Ret col. Is this possible on GB?

TIA

[#2]

How would you color with two columns in this case? Reticle would define the main color and %Fail the gradient or something similar? Have you considered creating shape map file for this type of analysis?

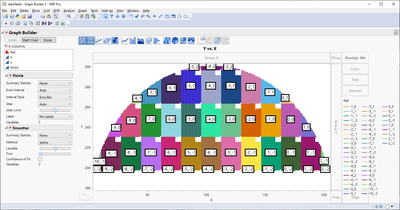

You can use graphic script to add the text annotation

Names Default To Here(1);

dt = Current Data Table();

gb = dt << Graph Builder(
	Size(979, 588),
	Variables(X(:X), Y(:Y), Overlay(:Ret)),
	Elements(Points(X, Y, Legend(10)), Smoother(X, Y, Legend(11)))
);

Summarize(dt, rets = By(:Ret), mx = Mean(:X), my = Mean(Y));

// Lazy option without evaluation
Report(gb)[FrameBox(1)] << Add Graphics Script(
	For(i = 1, i <= N Items(rets), i++,
		Text Color("Black");
		Text Size(12);
		Pen Color("Black");
		Pen Size(3);
		Text(Boxed, Erased, Center Justified, {mx[i], my[i]}, rets[i]);
	);
);

[#3]

Hi @jthi ,

I have tried the shap map, but it slows down JMP because I have 1 million rows.

I was thinking if there's a way to draw the border around the reticles using graphic script, I can border those reti on wafer map and this will let me distinguish the reticles, and then I can add %Fail to the color selection on the legend

Thanks,

[#4]

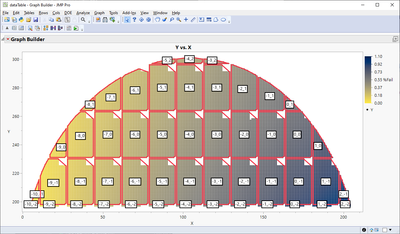

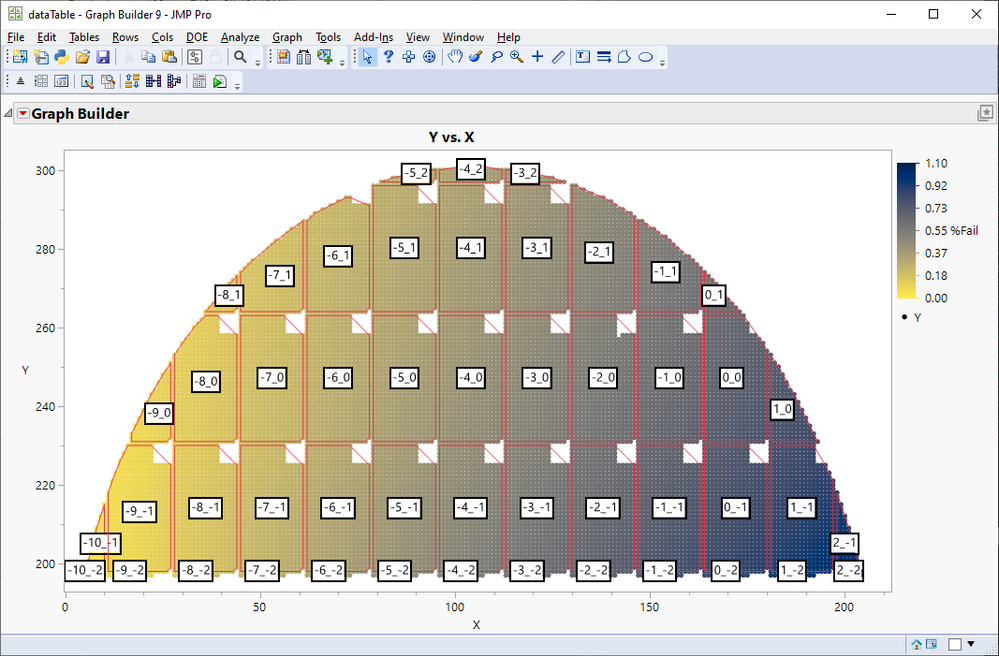

You can do something like this

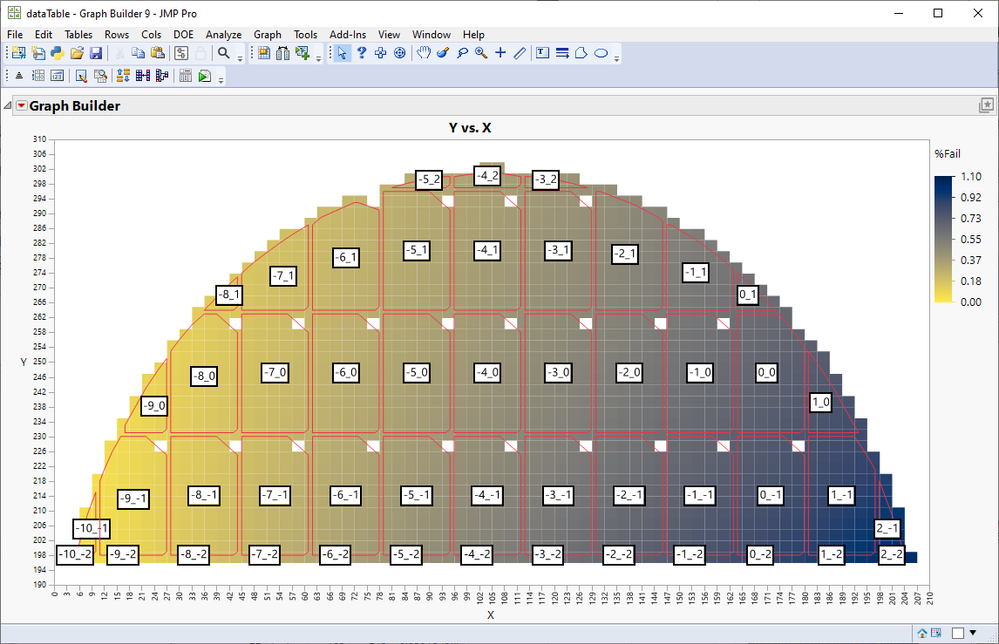

or maybe with a heatmap

[#5]

@jthi This looks great. Can you share the code?

[#6 · Accepted solution]

/*""" Reticle outline and names

Author: jthi
Creation Date: 2025-06-25
Creation JMP Version: JMP Pro 18.2.0

"""*/

Names Default To Here(1);

dt = Open("$DOWNLOADS/dataTable.jmp");
Summarize(dt, rets = By(:Ret));
aa = Associative Array();

For Each({curret}, rets,
	r = dt << Get Rows Where(:Ret == curret);
	tri = Triangulation(X(dt[r, "X"], dt[r, "Y"]));
	path = tri << Get Hull Path;
	aa[curret] = Associative Array();
	aa[curret]["Path"] = path;
	aa[curret]["X"] = Median(dt[r, "X"]);
	aa[curret]["Y"] = Median(dt[r, "Y"]);
);

gb = dt << Graph Builder(
	Size(937, 542),
	Show Control Panel(0),
	Variables(X(:X), Y(:Y), Color(:"%Fail"n)),
	Elements(Points(X, Y, Legend(10)))
);

For Each({{retname, param}}, aa,
	Eval(EvalExpr(
		Report(gb)[FrameBox(1)] << Add Graphics Script(
			Pen Color("Red"); // outline color for reticles
			Pen Size(3); // reticle outline size
			Path(Expr(param["Path"]), 0); // plots reticle outline

			Text Color("Black"); // text color
			Text Size(10); // text size for reticle
			Pen Color("Black"); // text box outline color
			Pen Size(2); // outline size for text box
			Text(Boxed, Erased, Center Justified, {Expr(param["X"]), Expr(param["Y"])}, Expr(retname));
		);
	));
);

You could potentially move the loop inside graphic script and not create looped scripts (I haven't tested which would be better).

Edit: Added image of the final solution
