Files are attached at end of page for these two examples:

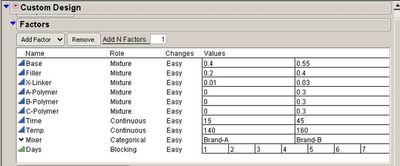

1. Ten-factor, four-type-of-factor, with additional constraints - "everything but the kitchen sink" real-world design
![7882_pastedImage_36.png 7882_pastedImage_36.png](https://community.jmp.com/t5/image/serverpage/image-id/1105i180AB6D88F1793FB/image-size/medium?v=v2&px=400)

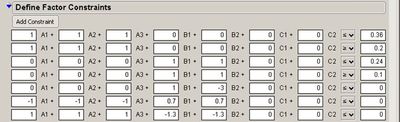

2. Seven-component mixture DOE with seven constraints - example of "mixture within a mixture" design
![7875_pastedImage_0.png 7875_pastedImage_0.png](https://community.jmp.com/t5/image/serverpage/image-id/1106iE1FB986DAF16EE0B/image-size/medium?v=v2&px=400)
![7878_pastedImage_7.png 7878_pastedImage_7.png](https://community.jmp.com/t5/image/serverpage/image-id/1107i901A003863EF97E1/image-size/medium?v=v2&px=400)
![7879_pastedImage_8.png 7879_pastedImage_8.png](https://community.jmp.com/t5/image/serverpage/image-id/1108i8DF4493C3520623F/image-size/medium?v=v2&px=400)

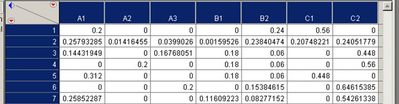

NOTE:
- all trials sum to 1.0000
- trial #1 has only three components; 1 each of type A, B, & C (low cost to manufacture?)
- trial #1 has at least 20% of A and no more than 24 % of B
- trial #2 has all 7 components in the blend
- trial #3 has two of the three type A components
- trial #4 has no less than 20% of type A, and no more than 24% of type B, AND B1 is no more than 3 times B2
- trial #6 has A3 no more than 1.3 times B2
- trial #7 has A1 no more than 1.3 times (B1 + B2)
