RGB Color Space Mapping
MikeD_Anderson
Staff MikeD_Anderson
Staff
Created: May 6, 2016 04:57 PM  |  Last Modified: Oct 18, 2016 7:35 PM
RGB Space.jmp
Color Script.jsl

A script to generate RGB colorspace maps.  The script generates a data table with columns for the RGB name, the Red, Green, and Blue components and the Brightness component.  Included is a sample data table of the output with scripts to generate the pictures below.

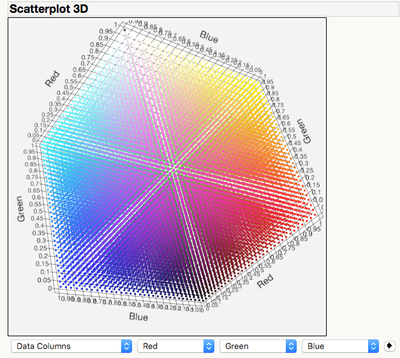

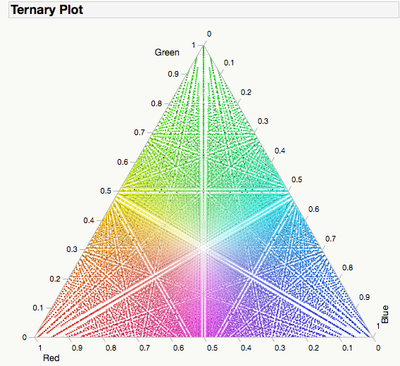

11488_Ternary Plot.png11501_Scatterplot 3D.png

Comments
IlliniGrad
‎12-18-2019 11:23 AM

This is great. Is there something available for making this for other color spaces (i.e. CIE u'v' space, for example)?

https://en.wikipedia.org/wiki/CIELUV
