Resizable semiconductor wafer outline and active area shape files
MikeD_Anderson
Staff MikeD_Anderson
Staff
Feb 28, 2024 04:47 PM
Wafer_Outline-Name.jmp
Wafer_Outline-XY.jmp
Wafer_ActiveArea-XY.jmp
Wafer_ActiveArea-Name.jmp

These shape files are fairly easy to use.  Just open the ...-XY.jmp files and edit the table variables so that they reflect the size of the wafer and the edge exclusion.  The calculated X and Y coordinates will adjust for the given wafer size.

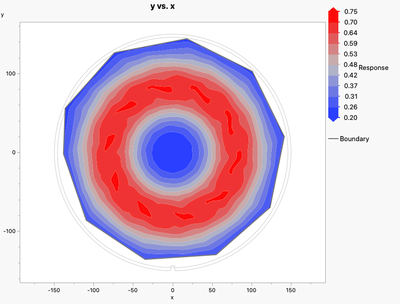

Then follow the instructions here: Using Custom Map Shape Files to put them where Graph Builder will find them. Once they're installed, they can used to annotate point images:

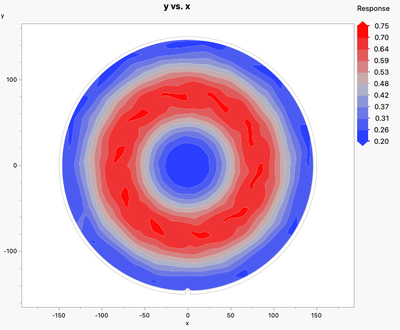

Or as clipping shapes for contour maps (instructions here)
