Smith Chart Generator
Created:
| Last Modified:

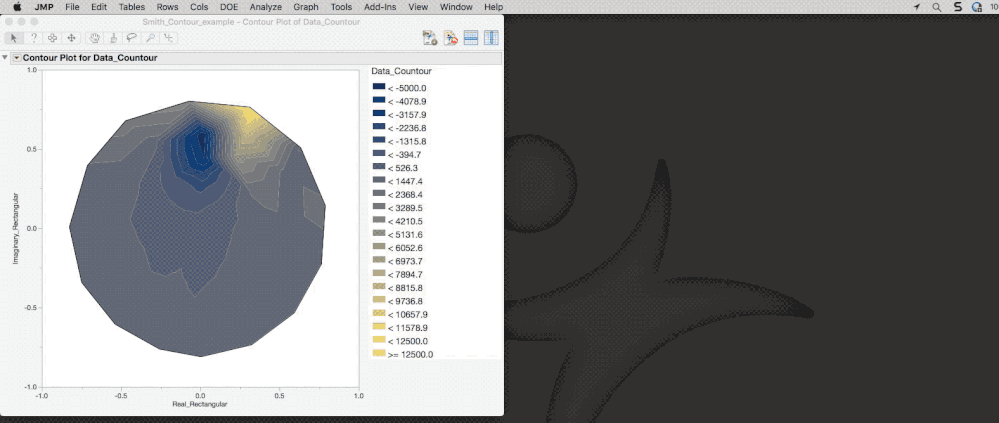

This is the first release of a tool for generating a Smith Chart annotation onto an existing contour map. The tool expects that the polar to cartesian transformation has already been done. An animation below demonstrates how the tool functions.
Some details about how the chart was constructed can be found here: John Jacob Jingleheimer…Smith Charts!
