JMP Add-In that plots uncertainty in X and Y values

A common requirement is to plot and review bivariate data when there is a measured or assumed uncertainty in both the X and Y value. For example, such uncertainty might be measured as a standard deviation.

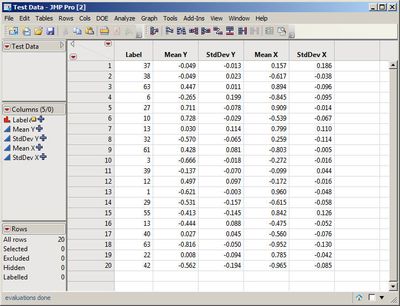

Using a table like this:

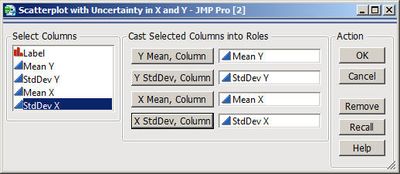

and assigning columns to the following roles:


this add-in produces a plot like this:


in which the uncertainty of each point is shown by the 'cross hairs'.
