Hello, Gurus,

I have a very simple question on how to extract certain bits from a string hex column(named Flags) to numbers. My column values will be like "0x1BA1". I would like to extract the bits 8 and 9 values and convert them to a value of 3 into my new column. Since I don't know the binary operation in jmp, I tried to extract B into 11 first by doing the following

Char To Hex(Munger(:Flags, 4, 1)).

It gives me a character column of 42. I tried to put a "integer" in to the formula

Char To Hex((Munger(:Flags, 4, 1)), "integer")

But it wouldn't recognize it. I'm using jmp11.2.1.

After extracting B, I'll use module(module(value,8),4) to get the lower 2 bits.

If there's an easy way to extract binary bits, that will be even better.

Thank you,

Jane

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Sep 15, 2015 11:55 AM
(9247 views)
| Posted in reply to message from jane_wang_seaga 09/15/2015 02:37 PM

As Craige pointed out (thanks, I was not aware), JMP 11 requires an even number of hex characters.

Try this formula for single character substrings:

Hex To Number**(**"0" || Substr**(**Flags, **4**, **1****))**;

6 REPLIES 6

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: how to extract certain bits from a string hex column to number ?

Sep 15, 2015 10:54 AM
(5378 views)
| Posted in reply to message from jane_wang_seaga 09/15/2015 12:25 PM

There is a function Hex to Number() that converts hexadecimal numbers (as strings) to decimal numbers.

Example:

hex = "0x1BA1";

// Hex to decimal

value = Hex To Number**(**Substr**(**hex, **4**, **1****))**;

Show**(**value**)**;

// decimal to binary

bin = "";

While**(**value,

bin = Char**(**Modulo**(**Num**(**value**)**, **2****))** || bin;

value = Floor**(**value / **2****)**;

**)**;

Show**(**bin**)**;

// Reverse last step for confirmation (or just for fun)

value2 = Sum**(****2** ^ **(**Loc**(**Reverse**(**Words**(**bin, ""**))**, "1"**)** - **1****))**;

Show**(**value2**)**;

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: how to extract certain bits from a string hex column to number ?

before JMP 12 you'll need an even number of hex characters:

Hex To Number( "0B" )

11

Craige

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: how to extract certain bits from a string hex column to number ?

Sep 15, 2015 1:28 PM
(5378 views)
| Posted in reply to message from Craige_Hales 09/15/2015 02:04 PM

Hi, Craig,

Thank you. The magic "0" in front of "B" is the key.

Jane

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: how to extract certain bits from a string hex column to number ?

Hello, MS,

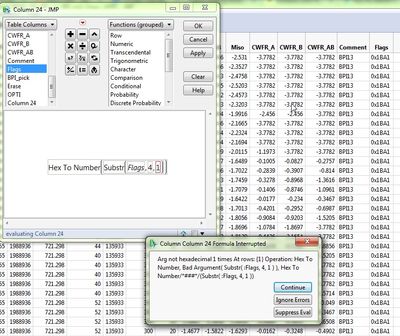

I have trouble with these "Hex to .." command. They don't work on my case. Here's the screen copy. I don't know what could be wrong.

Thank you,

Jane

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Sep 15, 2015 11:55 AM
(9248 views)
| Posted in reply to message from jane_wang_seaga 09/15/2015 02:37 PM

As Craige pointed out (thanks, I was not aware), JMP 11 requires an even number of hex characters.

Try this formula for single character substrings:

Hex To Number**(**"0" || Substr**(**Flags, **4**, **1****))**;

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: how to extract certain bits from a string hex column to number ?

Thank you, MS.

I tried the concat "0" and it works.

Jane
