graph builder x axes- how to change the axes rang when i wrapped several graphs together

graph builder x axes- how to change the axes rang when i wrapped several graphs together

8 REPLIES 8
ThuongLe
Level IV

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

not sure what you meant. Can you include a picture?
Thuong Le
txnelson
Super User

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

The axes on the left and bottom are still active when you wrap the graphs.  Is this what you need?

Jim
hillel
Level I

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

thank you for the quick response.
for every square i want the same value but to change the range. and if it
is possible to present them.
attaching an example:
[image: image.png]
txnelson
Super User

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

no attached image
Jim
hillel
Level I

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

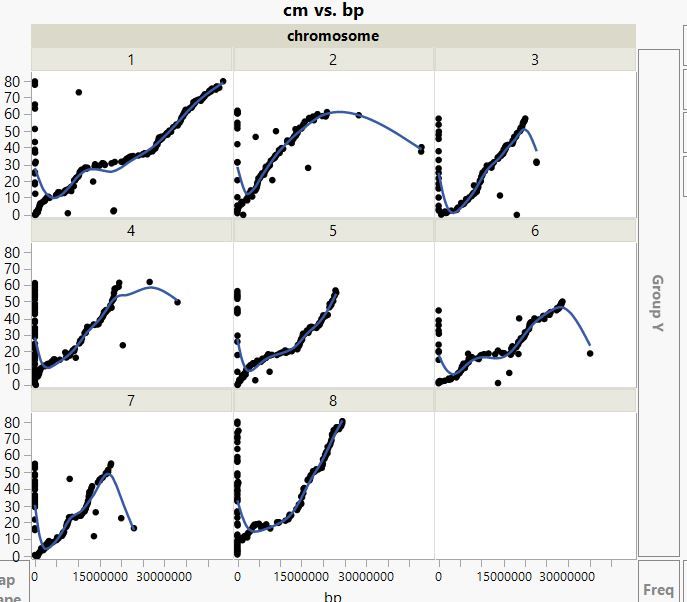

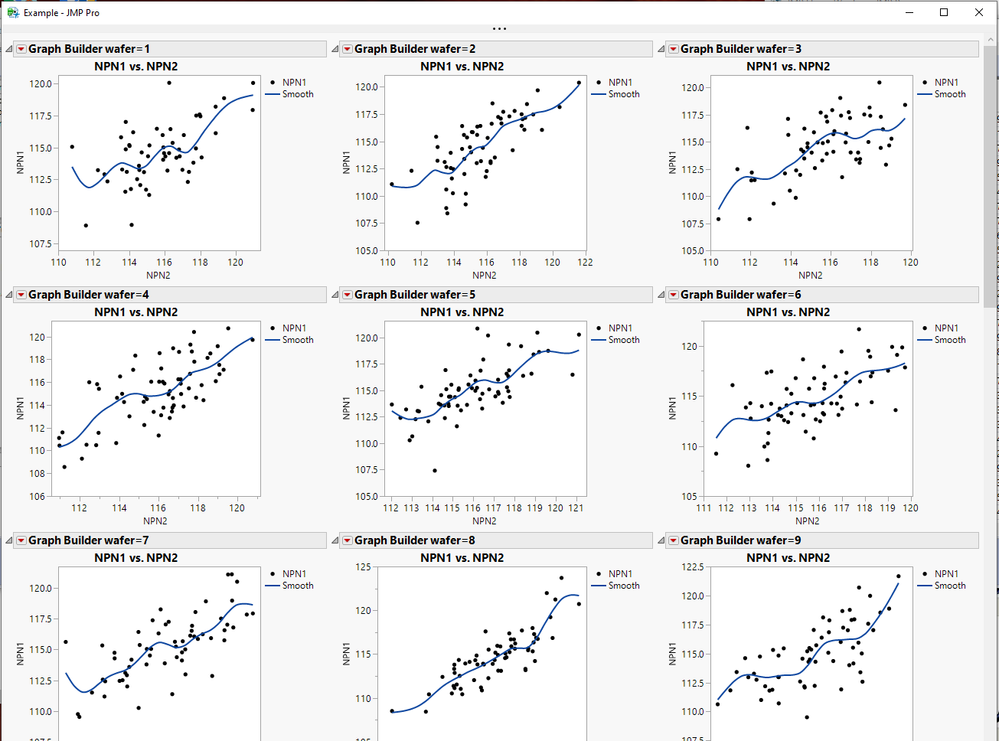

graph exemple.JPG

txnelson
Super User

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

The wrap will not give you separate axes that can be changed.  However, the By clause will, and if you put a Lineup Box() around the Graph Builder, you can get the results you want.  Below is a sample script


Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA/semiconductor capability.jmp" );

nw = New Window( "Example",
	Lineup Box( N Col( 3 ),
		Graph Builder(
	Size( 324, 293 ),
	Show Control Panel( 0 ),
	Variables( X( :NPN2 ), Y( :NPN1 ) ),
	Elements( Points( X, Y, Legend( 1 ) ), Smoother( X, Y, Legend( 2 ) ) ),
	by( :wafer )
)
	)
);
Jim
hillel
Level I

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

thank you very much. this us exactly what i been looking for. if just can explain step by step how you do it? (not in a script please )



thanks

txnelson
Super User

Re: graph builder x axes- how to change the axes rang when i wrapped several graphs together

To interactively do what I showed is a laborious process.

  1. Run the Graph Builder using the Dialog Box input, and specify a BY column.
  2. Once the graphs are produced open a Journal......CNTL/Shift/J
  3. Go back to the graphs and select the "Selection Tool" from the tool box.
  4. Go to the Outline Box for the first graph, click and hold and drag the graph to the journal
  5. Go to the next graph's Outline Box and click and drag it to the right of the first graph in the journal.
  6. Repeat step 5 with the next graph.
  7. Go to the 4th graph in the original output, and drag it to a position below the first graph in the journal.
  8. Repeat the process until all graphs have been moved.

As you can see, running a script would be much simpler.

Jim
