Show only one graph out of a matrix of graphs

When there is a matrix of graphs, say 4x5 of them on the dashboard, how do I pick just one graph of all and show it zoomed in? The selection does happen when a data filter is used when the two columns from the data table used to form the graphs in the horizontal and vertical direction and are narrowed down to a desired pair. It would be useful to have a single zoomed in graph where this selection is made from a drop down lists instead of histogram like control on the data filter form.

3 REPLIES 3
jthi
Super User

Re: Show only one graph out of a matrix of graphs

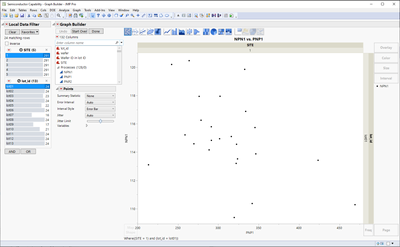

If you have a single graph builder with x and y groups and filter


just by filtering down the data you should get single graph

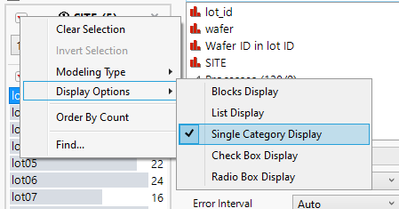

You can change how filter looks from filter's red triangle menu




-Jarmo
hogi
Level XII

Re: Show only one graph out of a matrix of graphs

For solving the first problem:

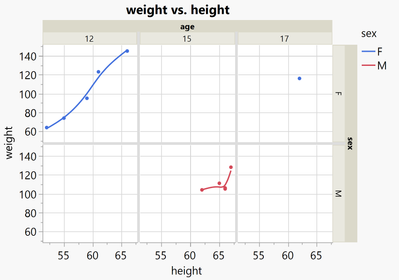

If you filter your data just keeping e.g. a graph with GroupX=1, GroupY=1 and another graph with GroupX=2,GroupY=2, you will indeed still see a 2x2 matrix of graphs with x=1,2  , x=1,2 with just position 1/1 and 2/2 containing a graph and the other 2 positions empty.

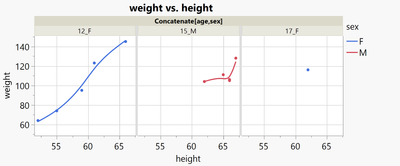

If you don't care where the individual plots show up, then you could remove the white regions by

- combining the columns used for GroupX and GroupY to a single column (get still the required intersections)

- use this column as Wrap



On the other hand, this example also shows the disadvantage:
you lose the information about the specific X and Y value.



From daily work in Data Visualization, I know:
There are definitely cases where the benefit of the denser packing overweights the disadvantage of the lost structure
Especially when the generated Matrix has to fit into a Powerpoint slide ...

related topic: X group: restrict the values on the axis to the respective group




Names Default to Here(1);
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );

Graph Builder(
	Variables(
		X( :height ),
		Y( :weight ),
		Group X( :age ),
		Group Y( :sex ),
		Overlay( :sex )
	),
	Elements( Points( X, Y, Legend( 1 ) ), Smoother( X, Y, Legend( 2 ) ) ),
	Local Data Filter(
		Add Filter(
			columns( :age, :sex ),
			Where( :age == 12 ),
			Where( :sex == "F" )
		),
		Add Filter(
			columns( :age, :sex ),
			Where( :age == 15 ),
			Where( :sex == "M" )
		),
				Add Filter(
			columns( :age, :sex ),
			Where( :age == 17 ),
			Where( :sex == "F" )
		)
	)
);

New Column( "Concatenate[age,sex]",
	Character,
	Formula( Char( :age ) || "_" || :sex ),
);

Graph Builder(
	Variables(
		X( :height ),
		Y( :weight ),
		Group X( :"Concatenate[age,sex]"n ),
		Overlay( :sex )
	),
	Elements( Points( X, Y, Legend( 1 ) ), Smoother( X, Y, Legend( 2 ) ) ),
	Local Data Filter(
		Add Filter(
			columns( :"Concatenate[age,sex]"n ),
			Where( :"Concatenate[age,sex]"n == {"12_F", "15_M", "17_F"} )
		)
	)
)
JMPer1
Level II

Re: Show only one graph out of a matrix of graphs

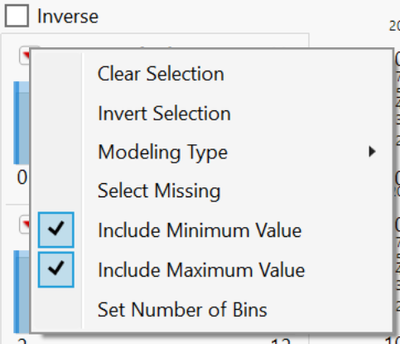

I am missing the "Display Options" item on the menu, not sure where to find it?
