How to show a decimal digit (DO NOT round numbers on a histogram)?

Created: Oct 7, 2019 11:46 AM  |  Last Modified: Oct 7, 2019 9:16 AM (5380 views)

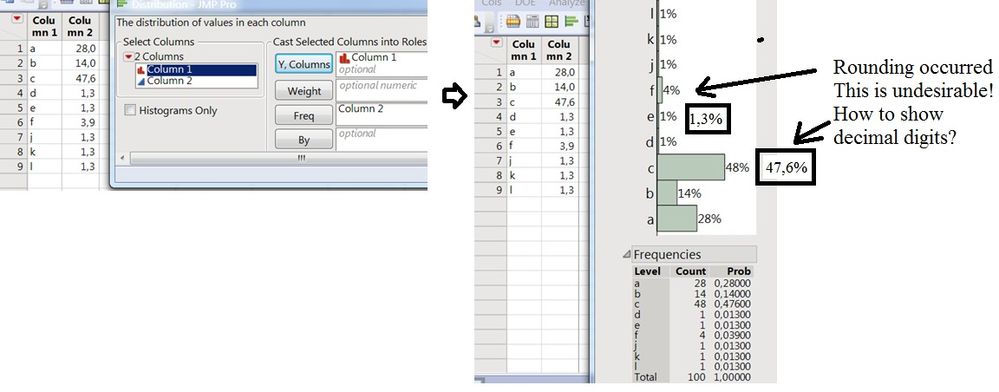

How to show a decimal digit (DO NOT round numbers on a histogram)? Pls. look pic.






Preview file
112 KB
0 Kudos
3 REPLIES 3
Dan_Obermiller
Staff Dan_Obermiller
Staff

Re: How to show a decimal digit (DO NOT round numbers on a histogram)?

Oct 7, 2019 11:55 AM (5373 views)  |  Posted in reply to message from Ted 10-07-2019

Right-click on the histogram.

Select Customize...

In the dialog box that appears, click on Histogram.

In the Percent Label Dec box, change the 0 to the number of decimal places you want displayed.

Dan Obermiller
Ted
Ted
Level IV

Re: How to show a decimal digit (DO NOT round numbers on a histogram)?

Created: Oct 7, 2019 12:17 PM  |  Last Modified: Oct 7, 2019 9:42 AM (5362 views)  |  Posted in reply to message from Dan_Obermiller 10-07-2019

Sorry, but look pic., pls

Anyway, Thanks Dan!


Preview file
70 KB
0 Kudos
Dan_Obermiller
Staff Dan_Obermiller
Staff

Re: How to show a decimal digit (DO NOT round numbers on a histogram)?

Oct 7, 2019 12:28 PM (5356 views)  |  Posted in reply to message from Ted 10-07-2019

You must be using version 13 of JMP. The ability to change the decimal points was added in version 14 of JMP.

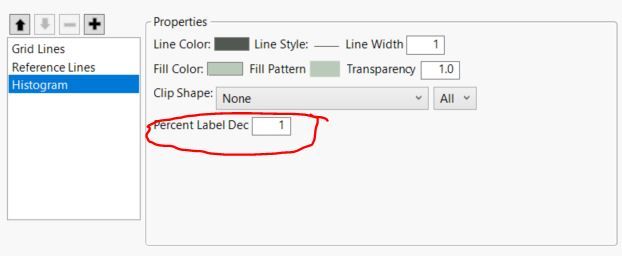

This is how it appears in v14:




and the final result:


Dan Obermiller
