How to plot both measurement points and target/control lines on same chart

Hi I am looking for a way to plot my old measured data alongside my target/upper/lower lines on the same chart. The target occasionally changes which is why I am not just using a Axis reference line.



Simplified, my data table has the below columns:

Measured ValueDate & time of measurementTarget (at time of measurement)Upper limit (at time of measurement)Lower Limit (at time of measurement)



I have made a paint rendition of roughly what i hope my output will look like when plotted:

Goal JMP output.png

1 ACCEPTED SOLUTION

Accepted Solutions
jthi
Super User

Re: How to plot both measurement points and target/control lines on same chart

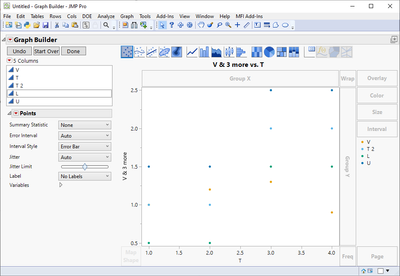

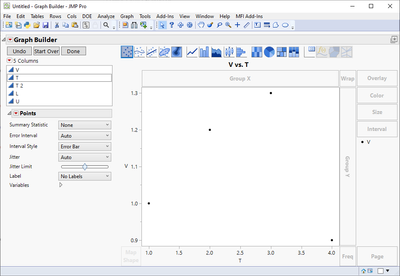

Using mockup data: add your value and time to graph builder


add target and limits to same y-axis as value

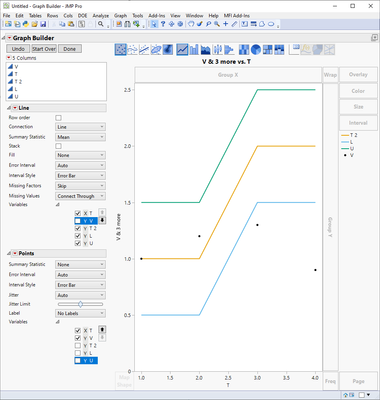

while holding shift click on the line chart to add that with points


From the variables, disable limits from points and value from line




-Jarmo

View solution in original post

2 REPLIES 2
txnelson
Super User

Re: How to plot both measurement points and target/control lines on same chart

Here is one way to handle this

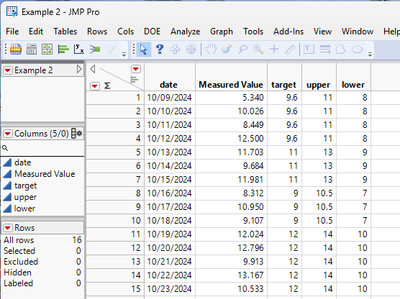

Set up your data as shown above

Go to Graph=>Graph Builder

Drag the Date column to the X axis drop area

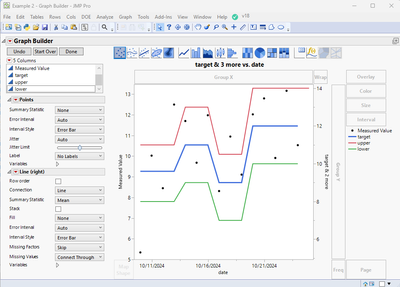

Select Measured Value, Target, Upper, Lower columns and drag them to the Y axis drop area

Right click on the graph and select Smoother=>Remove

Right click on the Y axis values and select Move Right

Move the Target, Upper and Lower to the right axis

Right click on the chart and select Points Right =>Change to Line

Jim
jthi
Super User

Re: How to plot both measurement points and target/control lines on same chart

Using mockup data: add your value and time to graph builder


add target and limits to same y-axis as value


while holding shift click on the line chart to add that with points


From the variables, disable limits from points and value from line




-Jarmo
