How to Maintain JMP legend layout when copying and pasting graphs into Word/PPT?

Tritonx4

New Contributor

Joined:

May 25, 2017

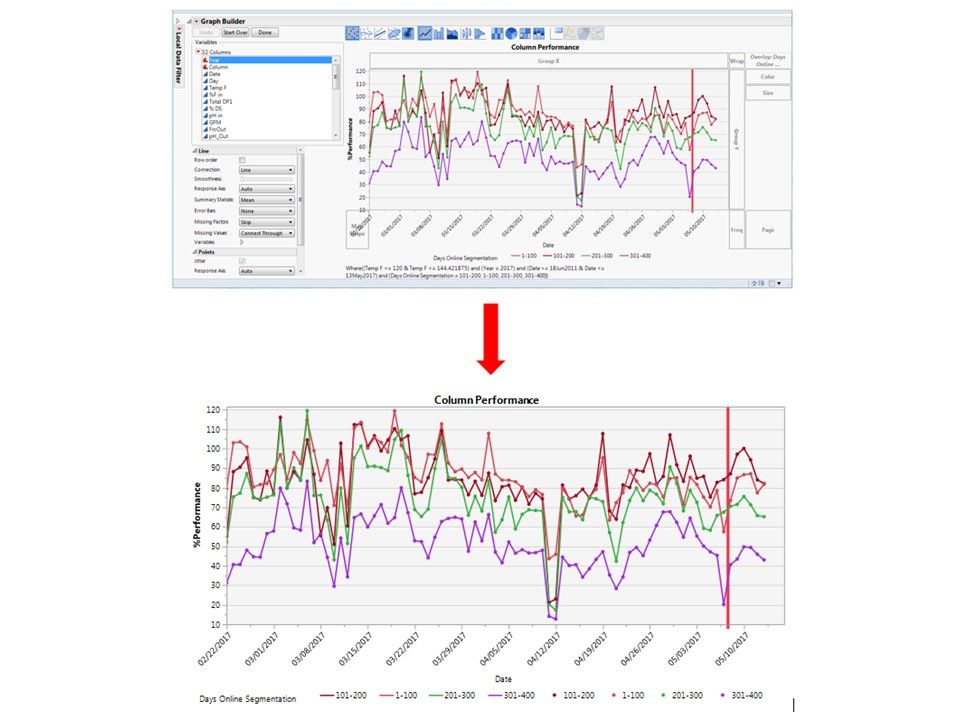

Since updating to JMP 13 I have not been able to maintain legend formatting when copying a graph into word or powerpoint. Attached is an example of how in JMP the legend will be formatted how I prefer and then after copying and pasting into word the legend usualy reverts to containing every possible item in the legend instead of only the items I selected.



Thoughts on what might be going on?

  legend formatting.jpg

1 ACCEPTED SOLUTION

Accepted Solutions
Tritonx4

New Contributor

Joined:

May 25, 2017

Solution

For what it is worth to anyone else experiencing the same, it seems that this issue does not happen when I right click on the graph with the arrow cursor and select "edit > copy graph". Using that method the legend displays as it appears in JMP. However, if I use the selection tool to highlight what I intend to copy (what I had been doing) or use any of the other methods highlighted above the legend does not display as it appears in JMP. Thanks again for the timely responses!
