Highlight certain points on control chart

Hi,

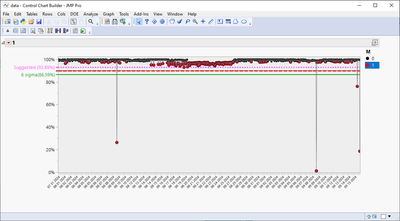

I want to highlight data points <= the limit values, 98% in this case, but something doesn't seem to work. I'm not sure where I'm making the error.




Here is my jsl code:



Names Default To Here( 1 );
dt2 = Current Data Table();
dt2 << begin data update; fairows = dt2 << get rows where( As Column( "1" ) <= 0.98 ); dt2 << end data update;
vc1 = dt2 << Control Chart Builder( Size( 890, 273 ), Show Two Shewhart Charts( 0 ), Test Excluded Subgroups( 0 ), Include Missing Categories( 0 ), Show Excluded Region( 0 ), Show Limit Summaries( 0 ), Variables( Subgroup( :Date ), Y( :"1"n ) ), Chart( Points( Statistic( "Individual" ) ), Limits( Sigma( "Moving Range" ), Show Center Line( 0 ), Show Lower Limit( 0 ), Show Upper Limit( 0 ) ) ), Show Control Panel( 0 ), SendToReport( Dispatch( {}, "Control Chart Builder", OutlineBox, {Set Title( "1" )} ), Dispatch( {}, "Date", ScaleBox, {Label Row( {Label Orientation( "Angled" ), Set Font Size( 8 )} )} ), Dispatch( {}, "1", ScaleBox, {Add Ref Line( 0.928901607373389, "Dotted", "Medium Light Magenta", "Suggested (92.89%)", 3 ), Add Ref Line( 0.897380548253792, "Solid", "Orange", "4.5 sigma(89.74%)", 2 ), Add Ref Line( 0.865859489134196, "Solid", "Medium Dark Green", "6 sigma(86.59%)", 2 ), Add Ref Line( 0.9, "Dense Dash", "Medium Dark Red", "90.00%", 3 )} ), Dispatch( {}, "graph display 1 title", TextEditBox, {Set Text( "" )} ), Dispatch( {}, "Subgroup display 1 title", TextEditBox, {Set Text( "" ), Set Font Size( 10 ), Set Font Style( "Bold" )} ), Dispatch( {}, "Y display 1 title", TextEditBox, {Set Text( "" )} ), Dispatch( {}, "Control Chart Builder", FrameBox, {Background Color( -15658734 ), Marker Size( 2 ), Marker Drawing Mode( "Outlined" )} ) ) ); //Highlight data points < 98% Eval( Eval Expr( Report( vc1 )[Framebox( 1 )] << add graphics script( Marker( Marker Size( 10 ); Color State( "red" );, Expr( :"1"n[fairows] ), Expr( :Date[fairows] ) ) ) ) );









2 ACCEPTED SOLUTIONS

Accepted Solutions
jthi
Super User

Re: Highlight certain points on control chart

Here is one option which might do what you are looking for

Names Default To Here(1);

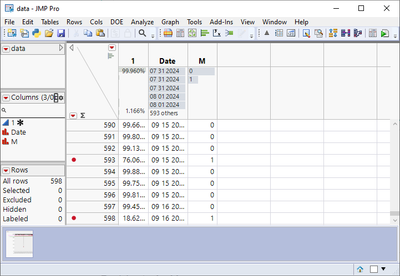

dt = Open("$DOWNLOADS/data.jmp");

fairows = dt << get rows where(As Column("1") <= 0.98);

vc1 = dt << Control Chart Builder(
	Size(890, 273),
	Show Two Shewhart Charts(0),
	Test Excluded Subgroups(0),
	Include Missing Categories(0),
	Show Excluded Region(0),
	Show Limit Summaries(0),
	Variables(Subgroup(:Date), Y(:"1"n)),
	Chart(Points(Statistic("Individual")), Limits(Sigma("Moving Range"), Show Center Line(0), Show Lower Limit(0), Show Upper Limit(0))),
	Show Control Panel(0),
	SendToReport(
		Dispatch({}, "Control Chart Builder", OutlineBox, {Set Title("1")}),
		Dispatch({}, "Date", ScaleBox, {Label Row({Label Orientation("Angled"), Set Font Size(8)})}),
		Dispatch({}, "1", ScaleBox,
			{Add Ref Line(0.928901607373389, "Dotted", "Medium Light Magenta", "Suggested (92.89%)", 3),
			Add Ref Line(0.897380548253792, "Solid", "Orange", "4.5 sigma(89.74%)", 2), Add Ref Line(
				0.865859489134196, "Solid", "Medium Dark Green", "6 sigma(86.59%)", 2
			), Add Ref Line(0.9, "Dense Dash", "Medium Dark Red", "90.00%", 3)}
		),
		Dispatch({}, "graph display 1 title", TextEditBox, {Set Text("")}),
		Dispatch({}, "Subgroup display 1 title", TextEditBox, {Set Text(""), Set Font Size(10), Set Font Style("Bold")}),
		Dispatch({}, "Y display 1 title", TextEditBox, {Set Text("")}),
		Dispatch({}, "Control Chart Builder", FrameBox, {Background Color(-15658734), Marker Size(2), Marker Drawing Mode("Outlined")})
	)
);

ms = Report(vc1)[FrameBox(1)] << Find Seg(MarkerSeg(1));
xs = ms << Get X Values;
ys = ms << Get Y Values;

Eval(Eval Expr(
	Report(vc1)[Framebox(1)] << add graphics script(
		Marker Size(10);
		Marker(
			Color State("red"),
			Expr(xs[fairows]),
			Expr(ys[fairows])
		)
	);
));
-Jarmo

View solution in original post

jthi
Super User

Re: Highlight certain points on control chart

Take values from your table and compare them to values of xs and ys (there are unlimited amount of ways of performing the comparison). It seems like your data also has single duplicate value which could potentially cause issues, maybe you should perform the comparison on the ys instead of the data table?

r = Loc(ys > 0.007);
-Jarmo

View solution in original post

7 REPLIES 7
jthi
Super User

Re: Highlight certain points on control chart

Here is one option which might do what you are looking for

Names Default To Here(1);

dt = Open("$DOWNLOADS/data.jmp");

fairows = dt << get rows where(As Column("1") <= 0.98);

vc1 = dt << Control Chart Builder(
	Size(890, 273),
	Show Two Shewhart Charts(0),
	Test Excluded Subgroups(0),
	Include Missing Categories(0),
	Show Excluded Region(0),
	Show Limit Summaries(0),
	Variables(Subgroup(:Date), Y(:"1"n)),
	Chart(Points(Statistic("Individual")), Limits(Sigma("Moving Range"), Show Center Line(0), Show Lower Limit(0), Show Upper Limit(0))),
	Show Control Panel(0),
	SendToReport(
		Dispatch({}, "Control Chart Builder", OutlineBox, {Set Title("1")}),
		Dispatch({}, "Date", ScaleBox, {Label Row({Label Orientation("Angled"), Set Font Size(8)})}),
		Dispatch({}, "1", ScaleBox,
			{Add Ref Line(0.928901607373389, "Dotted", "Medium Light Magenta", "Suggested (92.89%)", 3),
			Add Ref Line(0.897380548253792, "Solid", "Orange", "4.5 sigma(89.74%)", 2), Add Ref Line(
				0.865859489134196, "Solid", "Medium Dark Green", "6 sigma(86.59%)", 2
			), Add Ref Line(0.9, "Dense Dash", "Medium Dark Red", "90.00%", 3)}
		),
		Dispatch({}, "graph display 1 title", TextEditBox, {Set Text("")}),
		Dispatch({}, "Subgroup display 1 title", TextEditBox, {Set Text(""), Set Font Size(10), Set Font Style("Bold")}),
		Dispatch({}, "Y display 1 title", TextEditBox, {Set Text("")}),
		Dispatch({}, "Control Chart Builder", FrameBox, {Background Color(-15658734), Marker Size(2), Marker Drawing Mode("Outlined")})
	)
);

ms = Report(vc1)[FrameBox(1)] << Find Seg(MarkerSeg(1));
xs = ms << Get X Values;
ys = ms << Get Y Values;

Eval(Eval Expr(
	Report(vc1)[Framebox(1)] << add graphics script(
		Marker Size(10);
		Marker(
			Color State("red"),
			Expr(xs[fairows]),
			Expr(ys[fairows])
		)
	);
));
-Jarmo
Jackie_
Level VI

Re: Highlight certain points on control chart

Thanks Jarmo!

jthi
Super User

Re: Highlight certain points on control chart

Other good option would be to create new column your table and add row states based on that (you can also use it as row legend). This method does not allow you to modify marker size that easily though







-Jarmo
Jackie_
Level VI

Re: Highlight certain points on control chart

Hi @jthi ,

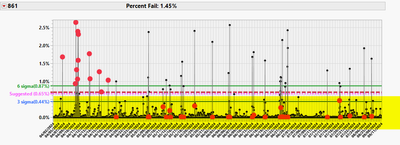

For some reason, it's highlighting values less than 0.007. However, the condition for getting rows is set to '>'. Something is not correct with xs and ys. Also, I don't want to color rows because it will reflect in another graph. Graphic script is the preference






Names Default To Here( 1 );
dt = Current Data Table();
fairows = dt << get rows where( As Column( "861" ) > 0.007 );

vc1 = dt << Control Chart Builder(
	Size( 890, 273 ),
	Show Two Shewhart Charts( 0 ),
	Test Excluded Subgroups( 0 ),
	Include Missing Categories( 0 ),
	Show Excluded Region( 0 ),
	Show Limit Summaries( 0 ),
	Variables( Subgroup( :Date ), Y( :"861"n ) ),
	Chart( Points( Statistic( "Average" ) ), Limits( Sigma( "Moving Range" ), Show Center Line( 0 ), Show Lower Limit( 0 ), Show Upper Limit( 0 ) ) ),
	Show Control Panel( 0 ),
	SendToReport(
		Dispatch(
			{},
			"Control Chart Builder",
			OutlineBox,
			{Set Title( "861                                                                       Percent Fail: 1.45%" )}
		),
		Dispatch( {}, "Date", ScaleBox, {Label Row( {Label Orientation( "Angled" ), Set Font Size( 8 )} )} ),
		Dispatch(
			{},
			"861",
			ScaleBox,
			{Add Ref Line( 0.00435435825878142, "Solid", "Blue", "3 sigma(0.44%)", 2 ), Add Ref Line(
				0.00653153738817213, "Dotted", "Medium Light Magenta", "Suggested (0.65%)", 3
			), Add Ref Line( 0.00870871651756283, "Solid", "Medium Dark Green", "6 sigma(0.87%)", 2 ), Add Ref Line(
				0.007, "Dense Dash", "Medium Dark Red", "0.70%", 3
			)}
		),
		Dispatch( {}, "graph display 1 title", TextEditBox, {Set Text( "" )} ),
		Dispatch( {}, "Subgroup display 1 title", TextEditBox, {Set Text( "" ), Set Font Size( 10 ), Set Font Style( "Bold" )} ),
		Dispatch( {}, "Y display 1 title", TextEditBox, {Set Text( "" )} )
	)
);

ms = Report( vc1 )[FrameBox( 1 )] << Find Seg( Marker Seg( 1 ) );
xs = ms << Get X Values;
ys = ms << Get Y Values;

Eval(
	Eval Expr(
		Report( vc1 )[Framebox( 1 )] << add graphics script(
			Marker Size( 10 );
			Marker( Color State( "red" ), Expr( xs[fairows] ), Expr( ys[fairows] ) );
		)
	)
);



jthi
Super User

Re: Highlight certain points on control chart

You have to compare if they match the same rows. If not you might first want to re-order your data, get rows of interest, build control chart and then add the markers.

-Jarmo
Jackie_
Level VI

Re: Highlight certain points on control chart

how can I compare?

jthi
Super User

Re: Highlight certain points on control chart

Take values from your table and compare them to values of xs and ys (there are unlimited amount of ways of performing the comparison). It seems like your data also has single duplicate value which could potentially cause issues, maybe you should perform the comparison on the ys instead of the data table?

r = Loc(ys > 0.007);
-Jarmo
