Created:
Mar 14, 2017 4:27 PM
| Last Modified: Mar 14, 2017 4:29 PM
(6703 views)

I have a heat map that needs some nested groups (in order to properly show values inside the heat map) squares. My issue is that a lot of the rows are entirely missing because it forces every group to exist. Is there a way to only show valid groups? For example:

```
Names Default to here(1);
dt = open("$SAMPLE_DATA\Big Class.jmp");
rows = dt << Get Rows Where(:age == 14 & :sex == "M");
dt << delete rows(rows);
dt << Graph Builder(
Variables( Group Y( :sex ), Group Y( :age ), Color( :height ) ),
Elements( Heatmap( Legend( 4 ) ), Caption Box( Legend( 5 ) ) )
);
```

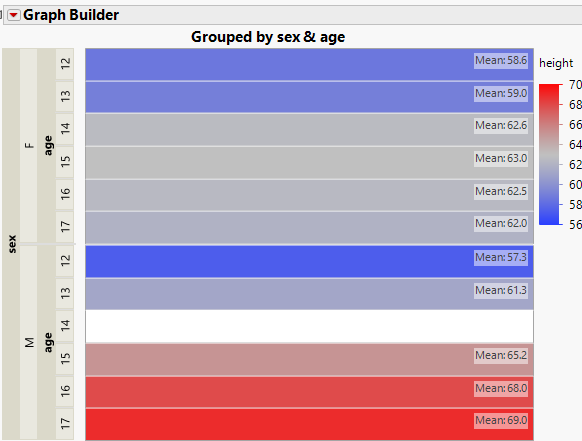

Gives.

I don't want to see the 14 year old Male category.

Or, if you know a better way to show the means for a column inside the square, I'd take that too.

Vince Faller - Predictum

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

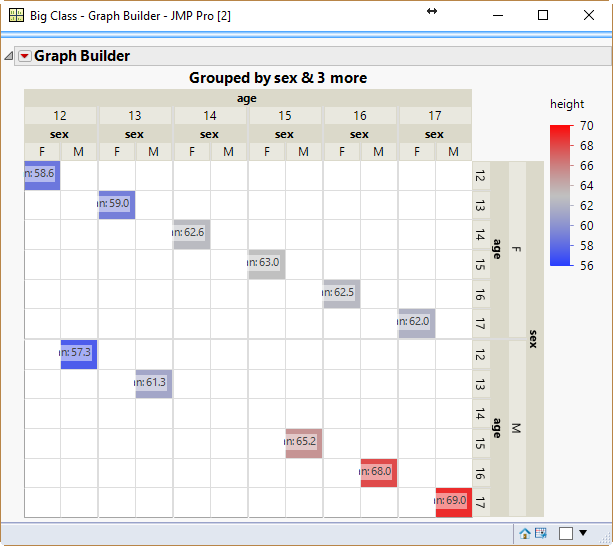

If you have JMP 14, heatmap now has a labeling capability. You may not need to use groups:

6 REPLIES 6

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Exclude Grouping values in nested groups in graph builder.

Would labeled bars work?

dt << Graph Builder( Size( 456, 413 ), Show Control Panel( 0 ), Variables( X( :height ), Y( :sex ), Y( :age, Position( 1 ) ), Color( :height ) ), Elements( Bar( X, Y( 1 ), Y( 2 ), Legend( 5 ), Label( "Label by Value" ) ) ), SendToReport( Dispatch( {}, "sex", ScaleBox, {Reversed Scale} ) ) );

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Exclude Grouping values in nested groups in graph builder.

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Exclude Grouping values in nested groups in graph builder.

Going to Bump this because it has come up again. Anyone have thoughts on a good way to do this?

Vince Faller - Predictum

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

If you have JMP 14, heatmap now has a labeling capability. You may not need to use groups:

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Exclude Grouping values in nested groups in graph builder.

Awesome! Now I just have to convince them to upgrade. :-P

More than appreciated John,

V

Vince Faller - Predictum

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Exclude Grouping values in nested groups in graph builder.

You may find some convincing material here: Explore These New Features in JMP^{®} 14.
