Embed a JMP platform dialog into a new window()

[#1]

Is there a way to embed part of a JMP built in platform dialog into a new window(). In this case specificaly I would like to embed the construct model effects window from fit model into a custom script:


[#2]

HI @pauldeen,

You sure can. Here's a simple example:

fmWindow = New Window( "Fit Model Dialog Example",
	H List Box(
		Text Box( "Other content here" ),
		Panel Box( "Launch Window",
		fm = Fit Model( Personality( Standard Least Squares ), Emphasis( Minimal Report ) )
		)
	)
);

I hope this helps!

@jules

--Edit--

As Chris pointed out, it looks like I skipped a critical part of your question and you're interested in just part of that dialog. I don't know of a way to bring in just that component, though depending on your use case, you *might* be able to accomplish what you're after by working with the display of that content with Margin() after you bring in the entire dialog. I don't really recommend this method, but am sharing it in case it happens to be helpful:

fmWindow = New Window( "Fit Model Dialog Example",
	H List Box(
		pb = Panel Box( "Launch Window",
			fm = Fit Model( Personality( Standard Least Squares ), Emphasis( Minimal Report ) )
		),
		Text Box( "Other content here" )
	)
);
pb << Margin( Left( -300 ), Top( -325 ) );

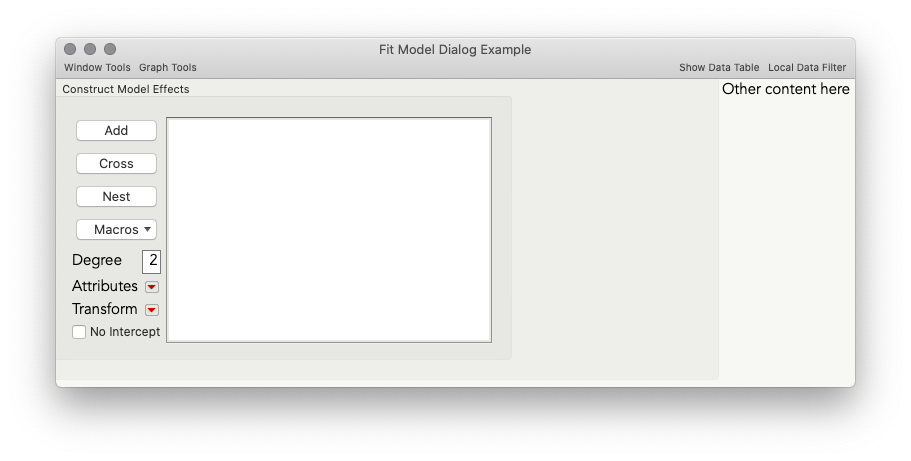

which will give:


[#3]

Hi @pauldeen,

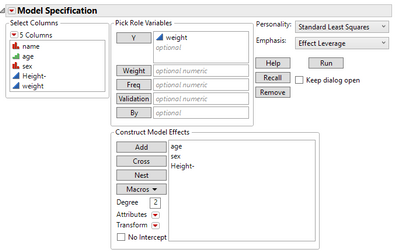

If I understand correctly, you would like to insert only the below highlighted piece into a window/custom dialog of your own. Not the whole dialog itself, correct?

Highlighted area.jpg

[#4 · Accepted solution]

Thanks Julian, with your hints I cracked it!

fmWindow = New Window( "Fit Model Dialog Example",
	H List Box(
		pb = Panel Box( "Launch Window",
			fm = Fit Model(
				Personality( Standard Least Squares ),
				Emphasis( Minimal Report ),
				SendToReport(
					Dispatch( {}, "", PanelBox, {Visibility( "Collapse" )} ),
					Dispatch( {}, "", Panel Box( 2 ), {Visibility( "Collapse" )} ),
					Dispatch( {}, "", Lineup Box( 2 ), {Visibility( "Collapse" )} ),
					Dispatch( {}, "", List Box( 23 ), {Visibility( "Collapse" )} )
				)
			)
		),
		Text Box( "Other content here" )
	)
);

By just collapsing all boxes I don't need I could eliminate the parts of the window I do not want!


[#5]

Brilliant! Nicely done, @pauldeen!
