DoE for Conditional Continuous factors

[#1]

I am trying to design an experiment where some factors are conditional, and I am not sure whether this can be handled properly using Custom Design or whether the design should be constructed manually.

I have one factor, X1, with a reference condition at 1, which is also the maximum value. X1 can only be varied below this reference condition, but one case of interest is also keeping it at the reference value.

For the other two factors, the structure is conditional:

• X2 can be either OFF or ON

  • If OFF, there is no level/intensity
  • If ON, it has a continuous range

• X3 can be either absent or present

  • If absent, there is no dosage/intensity
  • If present, it has a continuous range

So X2 and X3 are not simple continuous factors, because their continuous values only make sense when the corresponding factor is active/present.

My objective is to understand:

• The effect of X2 and/or X3 being present versus not present
• The effect of changing the level/intensity of X2 and/or X3 when they are active
• How these effects behave at different values of X1
• Whether there are interactions between X1, X2, and X3

One idea I am considering is to treat X2 and X3 as discrete numeric factors, where 0 represents OFF/absent and the non-zero values represent the active continuous range. For analysis, I would then avoid automatic coding/centering of polynomial terms so that the numeric levels are interpreted more directly.

However, I understand that this approach has drawbacks. In particular, the jump from 0 to the first non-zero level may combine two effects:

• the effect of switching the factor ON/present
• the effect of moving to the lowest active intensity/dosage

So it may not cleanly separate the activation/presence effect from the intensity/dosage effect. This could also make interaction terms harder to interpret, especially if X2 and X3 behave differently at different values of X1.

A second approach I am currently trying is to represent X2 and X3 using both a categorical activation factor and a discrete numeric level factor:

• one categorical OFF/ON factor plus one discrete numeric level factor for X2
• one categorical absent/present factor plus one discrete numeric level factor for X3



DOE(
    Custom Design,
    {
        Add Response( Maximize, "Y", ., ., . ),

        Add Factor( Continuous, -1, 1, "X1_Level", 0 ),

        Add Factor( Discrete Numeric, {0, 1, 2, 3}, "X2_Level", 0 ),
        Add Factor( Categorical, {"Off", "On"}, "X2_Status", 0 ),

        Add Factor( Discrete Numeric, {0, 1, 2, 3}, "X3_Level", 0 ),
        Add Factor( Categorical, {"Absent", "Present"}, "X3_Status", 0 ),

        Set Random Seed( 2055292721 ),
        Number of Starts( 4702 ),

        Add Term( {1, 0} ),
        Add Term( {1, 1} ),

        Add Term( {2, 1} ),
        Add Potential Term( {2, 2} ),
        Add Term( {3, 1} ),

        Add Term( {4, 1} ),
        Add Potential Term( {4, 2} ),
        Add Term( {5, 1} ),

        Add Term( {1, 1}, {2, 1} ),
        Add Term( {1, 1}, {4, 1} ),
        Add Term( {2, 1}, {4, 1} ),

        Set Sample Size( 12 ),

        Disallowed Combinations(
            ("X2_Status"n == "Off" & "X2_Level"n > 0) |
            ("X2_Status"n == "On" & "X2_Level"n == 0) |
            ("X3_Status"n == "Absent" & "X3_Level"n > 0) |
            ("X3_Status"n == "Present" & "X3_Level"n == 0)
        ),

        Simulate Responses( 0 ),
        Save X Matrix( 0 ),
        Make Design
    }
);

My concern is that the categorical status factor may be redundant, because the OFF/ON or absent/present status is already implied by the numeric level. I am therefore not sure whether this setup can truly separate the activation effect from the level/intensity effect, or whether it introduces collinearity/confounding that makes the model difficult to interpret.

My questions are:

1. Is it statistically sensible to include both the status factor and the discrete numeric level factor?
2. Can this setup meaningfully separate the activation effect from the level/intensity effect?
3. Would it be better to use only the discrete numeric factors, with 0 = Off/Absent and 1–3 = active levels?
4. Or is there a better way to handle this type of conditional factor structure in JMP Custom Design?

[#2]

Hi @JunaidM,

The categorical factors are not necessary, since having X2 level at 0 already imply that this factor is "OFF" (same for X3).
So creating a design adding these factors will only create redundant information (and collinearity) during design generation (and Singularity Details during modeling due to the linear dependancy between status and level factors).

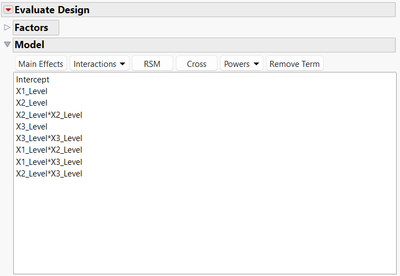

In the design generation script you shared, you can see that due to this redundancy (and dependancy between X2 and X2 status), the factors Xi_Status have been removed from the model by JMP in design evaluation platform, leaving only the discrete numeric and numeric factors terms:

So I would stick with the more direct design generation option.

What is your objective with this design ? Are you really interested into testing so many levels for X2 and X3 ? Could a screening/D-optimal design with 2 levels (one low: absence = 0 and one high for presence, for example 3) be sufficient for your needs ? Or 3 levels to analyze quadratic effects and avoid a simple absence/presence factor levels setting ?
If you really want to enforce these levels, you can still create your design with:

• X1 continuous factor (from -1 to 1)
• X2 discrete numeric with values 0, 1, 2 and 3, or continuous with appropriate model terms to have sufficient number of levels. If you really want 4 levels to be tested, specifying the term X2 at the power of 5 will create 4 levels for this factor in the design. See force levels in DoE for more info.
• X3 discrete numeric  with values 0, 1, 2 and 3, or continuous with appropriate model terms to have sufficient number of levels.

If you want to separate activation effect from level/intensity effect, you can still in the analysis evaluate what is the average response when X2 = 0 vs. average response when X2=1, 2 or 3, by averaging the response in these two conditions. It's far easier to summarize an information in the analysis if you already have a more granular and detailed response, as you'll be able to provide the two types of analysis and results : macro and detailed view.

Hope this answer will help you,
