Cylindrical Coordinate Viewer addin

This addin will help you to visualize 3-dimensional data whose coordinates are cylindrical.

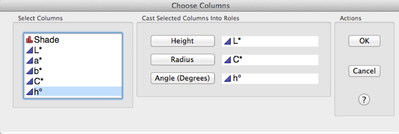

First, choose the appropriate columns from your data:

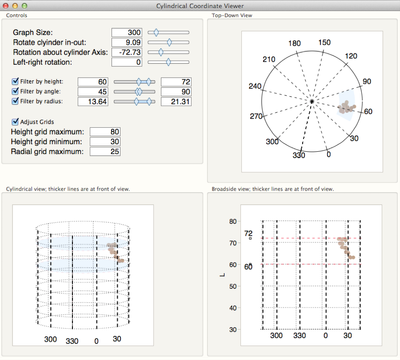

The “Controls” panel lets you apply filters, alter the graph in the “Cylindrical View” panel, and rotate the graphs in the other two panels.

The graph in the “Top-Down” panel provides a look at the data from above, while the “Broadside View” panel lets you see the data from the side of the cylinder, at the angle of your choice.

The graphs are linked to each other and to the data table, so you can work with the graphs and the data together, as you normally would in JMP.
