how do I change the number of legend from the graph builder plot?

ivy0825_gmail_c

Community Member

Joined:

May 9, 2016

Hi,

This is what it;s shown despite increasing the legend from the script file


Graph Builder(

  Size( 534, 545 ),

  Show Control Panel( 0 ),

  Variables(

  X( :Coord_X ),

  Y( :Coord_Y ),

  Overlay( :Name( "C2_10V (pF) - C0_0V (pF)" ) )

  ),

  Elements( Points( X, Y, Legend( 15 ) ) ),

  SendToReport(

  Dispatch(

  {},

  "400",

  ScaleBox,

  {Legend Model(

  15,

  Level Name( 0, "-0.1 - 0" ),

  Level Name( 1, "0.045 - 0.055" ),

  Level Name( 2, "0.055 - 0.065" ),

  Level Name( 3, "0.065 - 0.075" ),

  Level Name( 4, "0.075 - 0.085" ),

  Level Name( 5, "0.085 - 0.095" ),

  Level Name( 6, "0.095 - 2.1945" ),

  Properties( 1, {Line Color( -127 ), Fill Color( -127 )} )

  )}

  )

  )

);

1 REPLY
txnelson

Super User

Joined:

Jun 22, 2012

The legend is going to only show the data it finds in the data table.  However, if you run the graph against the entire data table, with all of the levels you want in the legend, you can then apply a Global Data Filter, select the checkboxes for "Select" and "Show", but do not select the "Include" checkbox, and then go to the choices for

     C2_10V (pF) - C0_0V (pF)

and select only the levels you want show in the graph, and you will get the graph you want.

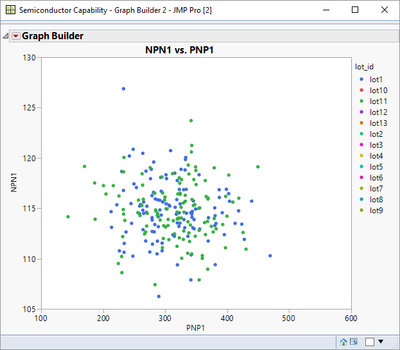

Below is an example:


Names Default To Here( 1 );

dt = Open( "$SAMPLE_DATA/semiconductor capability.jmp" );

dt << Graph Builder(

                Size( 534, 453 ),

                Show Control Panel( 0 ),

                Variables( X( :PNP1 ), Y( :NPN1 ), Overlay( :lot_id ) ),

                Elements( Points( X, Y, Legend( 12 ) ) ),

                SendToReport(

                             Dispatch(

                                {},

                                     "400",

                                ScaleBox,

                                {Legend Model(

                                             12,

                                           Base( 0, 0, 0 ),

                                           Base( 1, 0, 0 ),

                                           Base( 2, 0, 0 ),

                                           Base( 3, 0, 0 ),

                                           Base( 4, 0, 0 ),

                                           Base( 5, 0, 0 ),

                                           Base( 6, 0, 0 ),

                                           Base( 7, 0, 0 ),

                                           Base( 8, 0, 0 ),

                                            Base( 9, 0, 0 ),

                                            Base( 10, 0, 0 ),

                                            Base( 11, 0, 0 ),

                                            Base( 12, 0, 0 )

                                            )}

                                )

                )

);

dt << Data Filter(invisible,

      Location( {30, 30} ),

       Mode( Show( 1 ) ),

      Add Filter( columns( :lot_id ), Where( :lot_id == {"lot1", "lot11"} ), Display( :lot_id, Size( 204, 225 ), List Display ) )

);



Jim
