Understanding the meaning of a lift curve

I'm trying to understand the meaning of a lift curve. If it starts very high (>4) but drops to 0 after .1 does that mean there is no predictive power for 90% of the population?

1 ACCEPTED SOLUTION

Accepted Solutions
dale_lehman
Level VII

Re: Understanding the meaning of a lift curve

 You should provide a picture if you want a more thorough answer, but I think you are largely correct.  If the lift curve is 4 at a value of .1, that means that targeting the 10% of the observations with the highest probabilities (of whatever the target variable is) will pick up 40% of the actual positive occurrences.  If it drops after that, then the subsequent probabilities don't pick up many more occurrences.  However, I believe it should only drop towards 1, not zero.  When you get to 100% of the highest probabilities (i.e., all of the observations), you should have 100% of the occurrences.  A lift curve of 0 doesn't make any sense to me.

View solution in original post

3 REPLIES 3
dale_lehman
Level VII

Re: Understanding the meaning of a lift curve

 You should provide a picture if you want a more thorough answer, but I think you are largely correct.  If the lift curve is 4 at a value of .1, that means that targeting the 10% of the observations with the highest probabilities (of whatever the target variable is) will pick up 40% of the actual positive occurrences.  If it drops after that, then the subsequent probabilities don't pick up many more occurrences.  However, I believe it should only drop towards 1, not zero.  When you get to 100% of the highest probabilities (i.e., all of the observations), you should have 100% of the occurrences.  A lift curve of 0 doesn't make any sense to me.

Re: Understanding the meaning of a lift curve

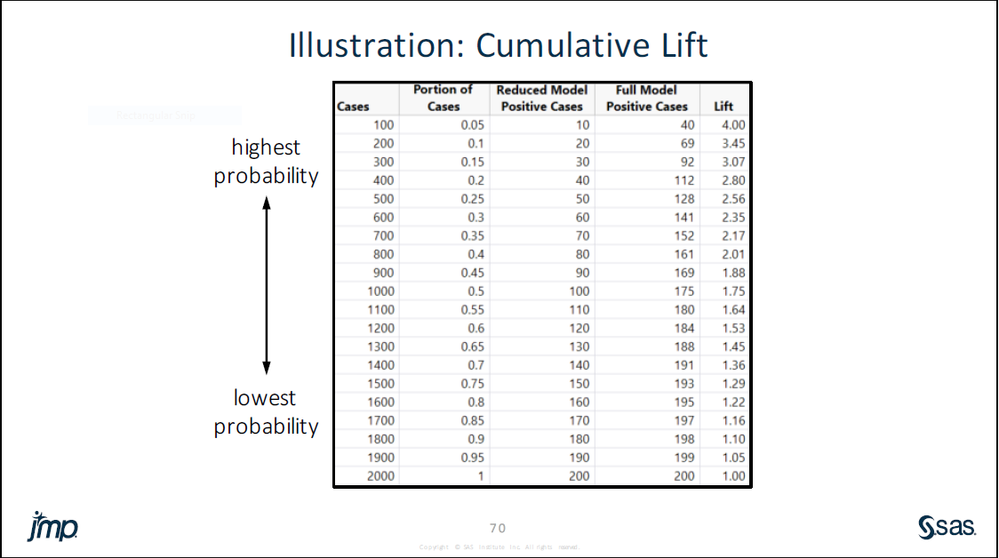

To clarify @dale_lehman's example, lift is a factor. Lift equal to 4 means that 4 times as many targets were conditionally predicted by the model than would be predicted by the marginal probability. See this slide from our copyrighted JMP training materials provides an example:




The reduce model is the marginal probability, 0.1 in this case. The full model is conditioned on the predictors or factors.

Yes, it only drops to 1 because it is a factor, comparing the true predicted targets to the marginal targets.



Also, the domain is always from the top or left of the axis. So a value of 0.4 means the top 40% of the cases ranked by predicted probability.



Note that there are different definitions of lift in use.

dale_lehman
Level VII

Re: Understanding the meaning of a lift curve

Thanks for the clarification.  It makes me wonder about something:  if you were to take, say, a point near the top of the lift curve, e.g., at .1 on the x axis, then the y axis is the multiplier (factor) that relates that to the true predictions.  Let's say the lift is 4.0 at an x value of 10%.  Then, if we were to draw a curve xy=40% into the graph, that would represent no additional lift beyond what the top 10% of the probabilities predicted.  For example, when x=20%, the xy=40% would show a lift of 2.0 at x=20%.  To the extent that the lift curve at x=20% lies above a y value of 2.0, then the model is adding predictive value beyond the highest 10% of the probabilities.  It seems to me that the area between the xy=constant curve and the lift curve provides some sort of measure of the lift over the range of x values (though it occurs to me that at x=100%, this xy=constant curve would go below 1.0 (0.4 in my example).  I would think there is some way to manipulate these areas into a type of measure, akin to the AUC.  Just wondering - do you know of anything along these lines?
