Hello,

I have a kinetic assay that records OD over time on a 96 well plate.

The output is OD and I have data columns with time and location (A1, A2 etc) for each OD value.

By applying the map shape I can visualize the 96-well plate in Graph Builder on a certain time (e.g. at 0 or 1 hour).

Would it be possible for Graph Builder or another SAS JMP feature to show the development of OD over time on the same plate (similar to the Bubble Plot function) ?

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

To expand on Ian's answer, you can add a local data filter to your graph, change your time axis to ordinal if you want to see discrete sample times, and then use animation under the data filter. If you run the script below you would just need to press play in the upper left:

```
Names default to here( 1 );
dt = Open( "$SAMPLE_DATA/Time Series/Air.jmp" );
Column( dt, "date" ) << Set Modeling Type( "Ordinal" );
graph = dt << Graph Builder(
Size( 516, 680 ),
Show Control Panel( 0 ),
Variables( Y( :Ozone Concentration ) ),
Elements( Bar( Y, Legend( 3 ) ) ),
Local Data Filter(
Add Filter(
columns( :date ),
Where( :date == 1953936000 ),
Display( :date, Size( 256, 360 ), List Display )
),
Animation( Animate Column( :date ), Animate Rate( 90 ) )
),
SendToReport(
Dispatch(
{},
"Ozone Concentration",
ScaleBox,
{Format( "Best", 9 ), Min( 0 ), Max( 10 ), Inc( 2 ), Minor Ticks( 1 )}
)
)
);
```

13 REPLIES 13

Highlighted
##

Get your Graph Builder display the way you want it, then try adding your 'time' variable to the local data filter.

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Tracking a 96-well over time

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

To expand on Ian's answer, you can add a local data filter to your graph, change your time axis to ordinal if you want to see discrete sample times, and then use animation under the data filter. If you run the script below you would just need to press play in the upper left:

```
Names default to here( 1 );
dt = Open( "$SAMPLE_DATA/Time Series/Air.jmp" );
Column( dt, "date" ) << Set Modeling Type( "Ordinal" );
graph = dt << Graph Builder(
Size( 516, 680 ),
Show Control Panel( 0 ),
Variables( Y( :Ozone Concentration ) ),
Elements( Bar( Y, Legend( 3 ) ) ),
Local Data Filter(
Add Filter(
columns( :date ),
Where( :date == 1953936000 ),
Display( :date, Size( 256, 360 ), List Display )
),
Animation( Animate Column( :date ), Animate Rate( 90 ) )
),
SendToReport(
Dispatch(
{},
"Ozone Concentration",
ScaleBox,
{Format( "Best", 9 ), Min( 0 ), Max( 10 ), Inc( 2 ), Minor Ticks( 1 )}
)
)
);
```

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Tracking a 96-well over time

Thank you for your reply.

It was easy to re-write the script to my case and add my wells under Shape.

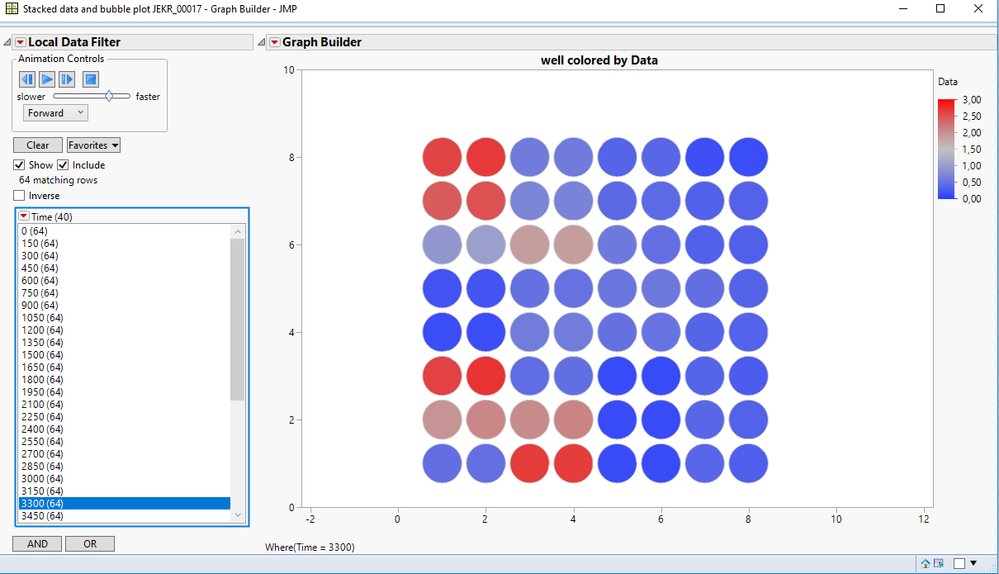

I have added the output below
