The main idea behind the new parallel Y-axes setting is to generate overlays of plots with several axes on the left, as shown in

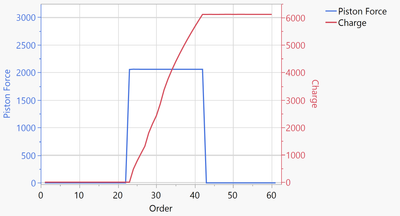

The same principle applies if some axes are on the right of the graph, e.g. for 1 axis on the left and 1 axis right:
Open( "$SAMPLE_DATA/Functional Data/Anodic Bond.jmp" );
Graph Builder(
// Parallel Axes( "Y Only" ),
Variables( X( :Order ), Y( :Piston Force ), Y( :Charge, Position( 1 ), Side( "Right" ) ) ),
Elements( Line( X, Y( 1 ) ), Line( X, Y( 2 ) ) ),
Local Data Filter(
Add Filter(
columns( :Wafer Id ),
Where( :Wafer Id == 11 )
)
)
);uncomment Parallel Axes( "Y Only" ) and the new functionality will help you to get the right colors:

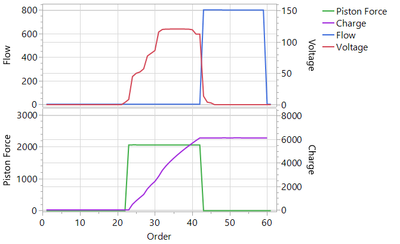

more fun: multiple values on the left and right side:
Graph Builder(
Parallel Axes( "Y Only" ),
Variables(
X( :Order ),
Y( :Flow ),
Y( :Voltage, Position( 1 ), Side( "Right" ) ),
Y( :Piston Force ),
Y( :Charge, Position( 2 ), Side( "Right" ) )
),
Elements( Position( 1, 1 ), Line( X, Y( 1 ) ), Line( X, Y( 2 ) ) ),
Elements( Position( 1, 2 ), Line( X, Y( 1 ) ), Line( X, Y( 2 ) ) ),
Local Data Filter(
Add Filter(
columns( :Wafer Id ),
Where( :Wafer Id == 11 ),
Display( :Wafer Id, N Items( 15 ), Find( Set Text( "" ) ) )
)
)
);
remove the Parallel Axes( "Y Only" ) to see how the graph is generated:
note that the different traces have to be in separate graphs at first (e.g. Flow and Piston Force fo the left side) -
rather than being merged into the same graph.
The same logic holds for "all parallel axes on the left":
Do not merge the traces into the same graph yourself; first, they must be in different graphs on top of each other.
As soon as the user activates Parallel Axes , it's JMP who will merge the traces - and split the axes.
Expert mode: Let's see what happens when a user merges 2 traces into the same graph (and adds some other traces on top) ...
After activating Parallel Axes, the 2 merged traces will use the same axis while the other traces get their own axis.
I hope this explanation helps you to understand the general logic.
"Y Only"?
so, there will be "X only" and "X and Y" as well ? - but maybe in a next version of JMP ...
side discussion of /
"Only X"
here is a wish in the wish list. Maybe not exactly "Parallel X Axes" *) - but closely linked to it
by @Morten
*) the secondary x axis could be placed at the opposite side of the graph.
In dependent of the location of the secondary X axis, I can think of 2 distinct application cases for the secondary x axis:
- 2 overlayed graphs, using individual / separate x-axes
(analogous the existing behavior for different Y axes) - a single graph with a fixed, "physical" / mathematical link between the first and the secondary axis labels *)
e.g.
- 1/T [K] + T[°C]
- wavelength in nm + wavelength in 1/cm

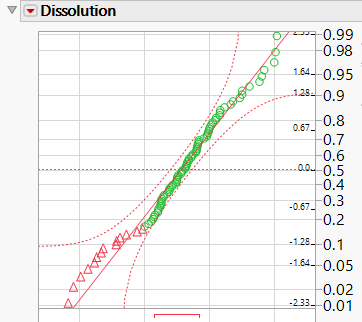

- deviation in % + factors of sigma:
*) With Parallel Axes( "X Only" )available, the user will be able to create the linked X axes by adding a secondary axis without a graph - and then manually adjusting the scale and offset to match the values of both axes. A mathematically correct/fixed link will be more professional - but also much more complicated to define, especially for complicated links (= the most interesting application cases) like X and 1/X and percent and factors of sigma. I guess most users will be happy with the first (manual) option.
edit:
**) With Parallel Axes( "Y Only" )available in JMP19, the user can create a fake graph with linked X axes:
... by creating a graph with manually "linked" Y axes and rotating the graph by 90° (see below)
***) With JMP19 and below, the user can create a fake graph with linked X axes: top & bottom
by creating a graph with manually "linked" left and right Y axes and rotating the graph by 90° (see below)
"X and Y"?
-> better to NOT have it ; )
I remember a meeting where a colleague used such a graph – it's soooo difficult for the human brain to combine the right dimensions!
This approach might save space in the presentation, but it wastes meeting time on discussions about the axes.

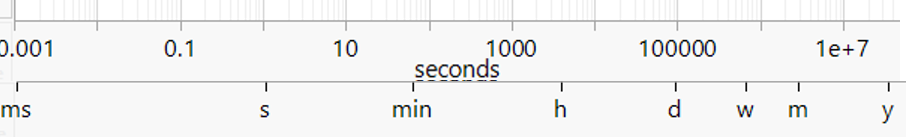

and here the ultimate use case:
log (seconds) + everyday timescales
... for aging plots which are physically correct - and easy to interpret.
This is a toy script to play with the features:
Open( "$SAMPLE_DATA/Reliability/GaAs Laser.jmp" );
gb = Graph Builder(
Size( 542, 598 ),
Show Legend( 0 ),
Parallel Axes( "Y Only" ),
Graph Spacing( 4 ),
Variables( X( :Current ), Y( :Hours, Side( "Right" ) ), Y( :Hours, Side( "Right" ) ), Overlay( :Batch ) ),
Elements( Position( 1, 1 ), Points( X, Y, Legend( 45 ) ) ),
Elements( Position( 1, 2 ), Smoother( X, Y, Legend( 44 ) ) ),
SendToReport(
Dispatch( {}, {:Current}, ScaleBox, {Label Row( Label Orientation( "Vertical" ) )} ),
Dispatch( {}, "", ScaleBox,
{Label Row(
{Automatic Tick Marks( 0 ), Show Major Grid( 0 ), Show Major Labels( 0 ), Show Major Ticks( 0 ),
Show Minor Ticks( 0 )}
)}
),
Dispatch( {}, "", ScaleBox( 2 ),
{Label Row(
{Automatic Tick Marks( 0 ), Show Major Grid( 0 ), Show Major Labels( 0 ), Show Major Ticks( 0 ),
Show Minor Ticks( 0 )}
)}
),
Dispatch( {}, {:Hours}, ScaleBox,
{Scale( "Log" ), Min( 10 ), Max( 10000 ), Inc( 1 ), Minor Ticks( 1 ),
Add Ref Line( 24, "Solid", "Black", "day", 1 ), Add Ref Line( 168, "Solid", "Black", "week", 1 ),
Add Ref Line( 720, "Solid", "Black", "month", 1 ), Add Ref Line(
2160, "Solid", "Black", "quarter", 1
), Label Row(
{Label Orientation( "Vertical" ), Show Major Grid( 0 ), Show Major Labels( 0 ),
Show Major Ticks( 0 ), Show Minor Labels( 0 ), Show Minor Ticks( 0 )}
)}
),
Dispatch( {}, {:Hours}, ScaleBox( 2 ),
{Scale( "Log" ), Min( 10 ), Max( 10000 ), Minor Ticks( 1 ),
Label Row( {Label Orientation( "Vertical" ), Show Minor Grid( 1 ), Show Minor Labels( 0 )} )}
),
Dispatch( {}, {:Hours, "Y title"}, TextEditBox, {Rotate Text( "Left" )} ),
Dispatch( {}, {:Hours, "Y 1 title"}, TextEditBox, {Rotate Text( "Left" )} )
)
);
report(gb)[GraphBuilderBox(1)] << save picture( "$TEMP/graph.png", "png" );
img = Open( "$TEMP/graph.png", "png" );
img << rotate(90) << scale(0.5);
New window("graph", img)

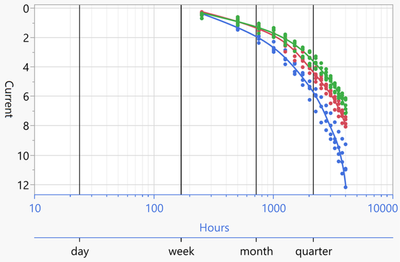

It creates a plot with a :
- ... actually, not a real "X" axis - it's a Y axis and the plot is rotated
(please notice the wrong orientation of the Y axis label) - why is the x axis blue?
This is a conflict between "Parallel Axes" and Overlay.
why just parts of the axes? I don't know.

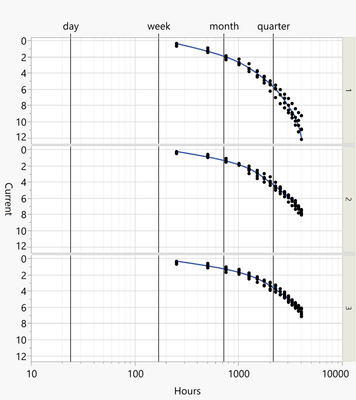

Actually, it's better to switch off the parallel axes and use labels on opposite sides of the plot.
I really like this mode — if it were available for the X-axis, I would use it quite often.
gb = Graph Builder(
Size( 530, 473 ),
Graph Spacing( 4 ),
Show Legend( 0 ),
Variables(
X( :Current ),
Y( :Hours ),
Y( :Hours, Position( 1 ), Side( "Right" ) ),
Group X( :Batch, Show Title( 0 ) )
),
Elements( Smoother( X, Y( 1 ), Legend( 40 ) ), Points( X, Y( 2 ), Legend( 41 ) ) ),
SendToReport(
Dispatch( {}, {:Hours}, ScaleBox,
{Scale( "Log" ), Min( 10 ), Max( 10000 ), Inc( 1 ), Minor Ticks( 1 ),
Add Ref Line( 24, "Solid", "Black", "day", 1 ), Add Ref Line( 168, "Solid", "Black", "week", 1 ),
Add Ref Line( 720, "Solid", "Black", "month", 1 ), Add Ref Line(
2160, "Solid", "Black", "quarter", 1
), Label Row(
{Label Orientation( "Vertical" ), Show Major Grid( 0 ), Show Major Labels( 0 ),
Show Major Ticks( 0 ), Show Minor Labels( 0 ), Show Minor Ticks( 0 )}
)}
),
Dispatch( {}, {:Hours}, ScaleBox( 2 ),
{Scale( "Log" ), Min( 10 ), Max( 10000 ), Minor Ticks( 1 ),
Label Row( {Label Orientation( "Vertical" ), Show Minor Grid( 1 ), Show Minor Labels( 0 )} )}
),
Dispatch( {}, {:Hours, "Y title"}, TextEditBox, {Set Text( "" )} ),
Dispatch( {}, {:Hours, "Y r title"}, TextEditBox, {Rotate Text( "Left" )} )
)

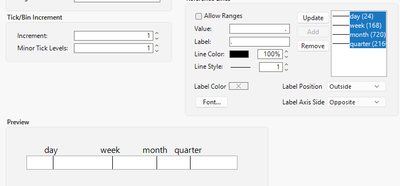

);One could argue that for this "label mode" it's much easier to use "opposite side" in the reference line menu to get the labels there :

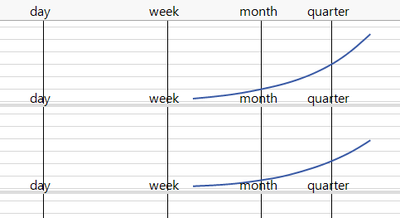

But everybody hates the "clones" that show up with this mode:
@hogi wrote:
... conflict between "
Parallel Axes" and Overlay.
This conflict is also present in the current mode - and thereby reduces the number of possible application cases.

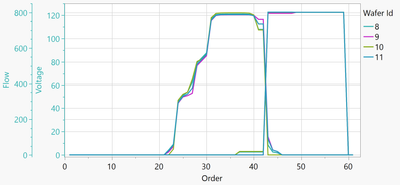

With Parallel Axes activated, when the user activates Overlay as well, overlay controls the color and the colors of all parameters get synchronized (visible by the same color of the axis labels).
Open( "$SAMPLE_DATA/Functional Data/Anodic Bond.jmp" ); Graph Builder( Size( 957, 548 ), Parallel Axes( "Y Only" ), Graph Spacing( 4 ), Variables( X( :Order ), Y( :Flow ), Y( :Voltage ), Overlay( :Wafer Id ) ), Elements( Position( 1, 1 ), Line( X, Y ) ), Elements( Position( 1, 2 ), Line( X, Y) ), Local Data Filter( Add Filter( columns( :Wafer Id ), Where( :Wafer Id == {8, 9, 10, 11} ), Display( :Wafer Id, N Items( 15 ), Find( Set Text( "" ) ) ) ) ) );

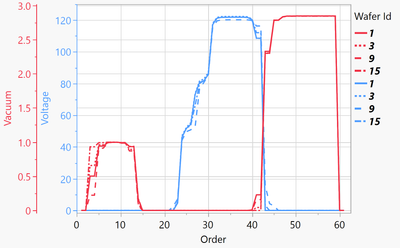

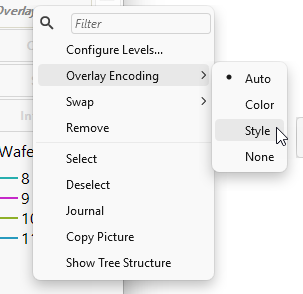

the trick: Use Overlay Encoding = Style,
and assign different colors to all curves for the same parameter:
As this has to be done manually, this can take forever. An easy trick: use Graph Builder Toolbar / Graph builder remote control from the market place:

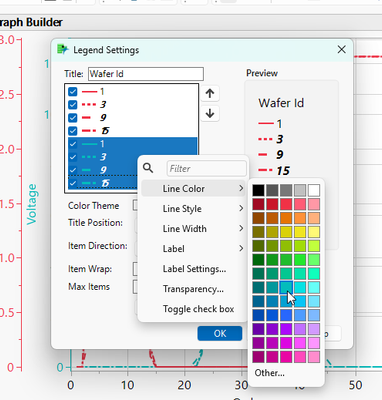

Another Trick: open the legend menu, select a bock of legend entries and apply the color via right click.
[when you try the same in the legend itself, the new color will be assigned to all parameters]
