I am trying to replicate a graph for which I have downloaded the exact same data but I am having trouble using overlay selectively.

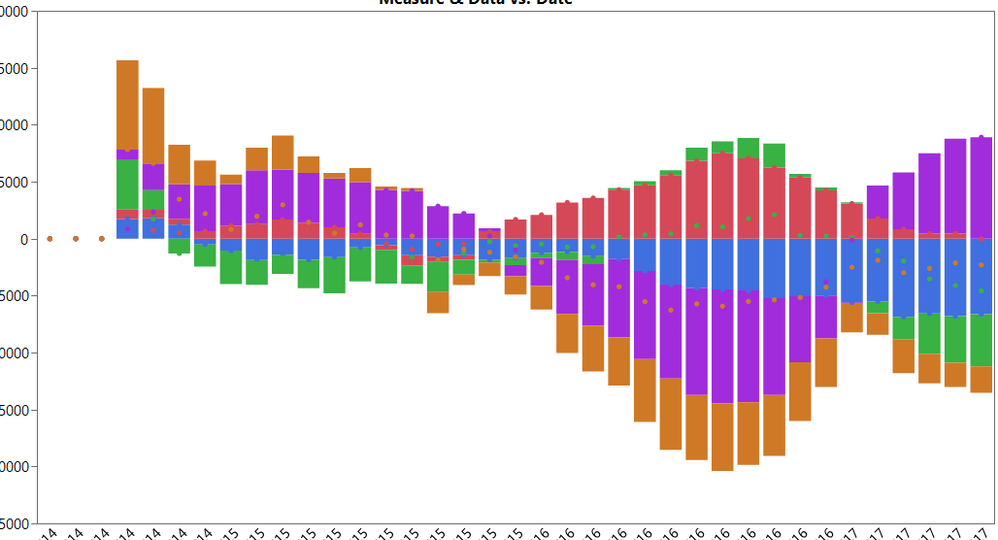

This is the original graph:

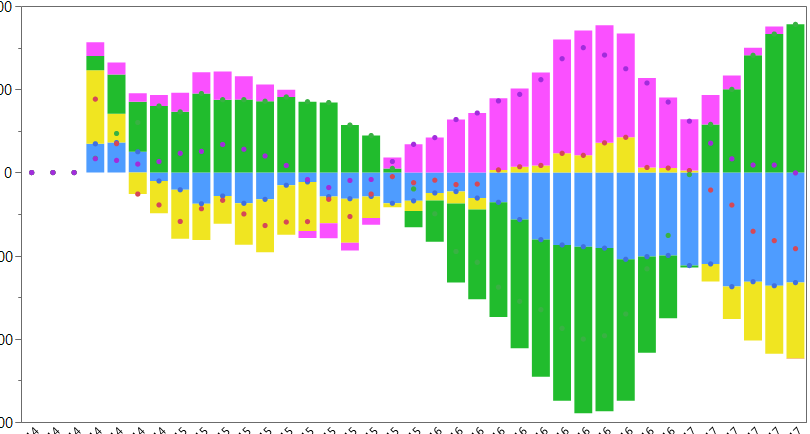

and this is the most I manage to get:

My biggest issue is getting the accumulated black line. As I use overlay to create the stacked bars, the overlay applies to the points too and I end up getting plenty of points/lines...

Is there a way to have the overlay apply to only one of the graphs? Maybe via JSL?

While we are at it...:) As you can see, the other difference between the graphs is the order of the variables within the bars...can this be changed?

Thanks in advance!

2 ACCEPTED SOLUTIONS

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Aug 16, 2017 7:25 AM
(4626 views)

Solution

*While we are at it...:) As you can see, the other difference between the graphs is the order of the variables within the bars...can this be changed?*

Right click on the column header for the variable in question.

Select Column Info

Click Column Properties > Value Ordering

Rearrange the values according to your desired sort order

Programmatically you can do this like so:

```
dt = New Table( "", Add Rows( 3 ),
New Column( "Column 1", Character, "Nominal",
Set Values( {"a", "b", "c"} )
)
);
column(dt, "Column 1") << Set Property( "Value Ordering", {"c", "a", "b"} );
```

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Aug 25, 2017 10:04 AM
(4517 views)

Solution

What you want to do is probably best accomplished by creating an aggregate column (either a formula column in the data table, or a virtual column in the Graph Builder platform). This column would be the sum of your measures grouped by your X variable. Then:

1. place your data column and the aggregate column in the Y-role in Graph Builder

2. place your X and overlay variables in the appropriate roles

3. select the Bar Chart (Stacked) element and turn off the aggregate variable

4. then add the line element (shift-click) and turn off the data variable (leaving the aggregate and X variables checked)

5. follow step #4 for the points element if desired (turn off the jitter option)

6. Double-click the legend to edit what is displayed, i.e. captions and line colors

I've enclosed a sample file with a Graph Builder script... hope this helps.
