Is it Possible to Create a Scatter Plot with Pairs of Points Connected in GraphBuilder?

sornasst

Community Trekker

Joined:

Feb 2, 2016

Hi,

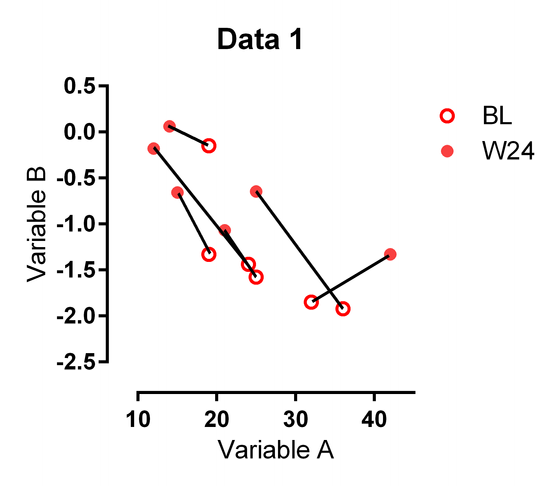

I would like to create a large number (~100) of partially connected scatter plots similar to the mock example below:

Mock Connected Scatter PlotMock Connected Scatter Plot

Each connecting line connects the Baseline (BL) point to the Week 24 (W24) point for a patient.

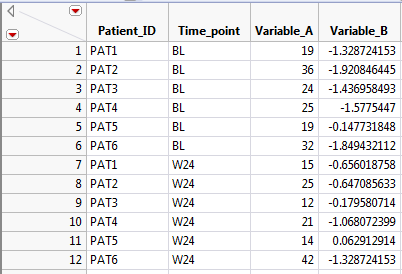

The data would be in the folling format


Let me know if you have any ideas: I certainly don't want to draw each connecting line by hand like I did on the mock satter plot above.

Thank you for your help.



1 ACCEPTED SOLUTION

Accepted Solutions
txnelson

Super User

Joined:

Jun 22, 2012

Solution

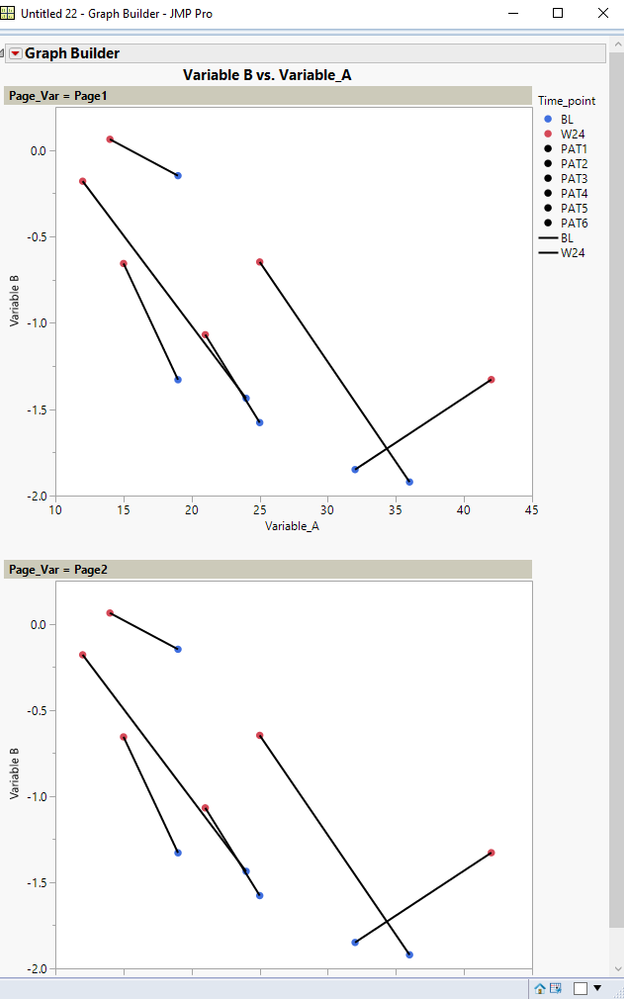

Here is an attempt at what you want.  It is pretty close to what you are requesting. I added a column to your data table which is being used as a Page separator, which I am imagining will be your 1-100 graphs.  Here is the output, followed by the script that generates the sample data table and the graphic output:


Names Default to here(1);
dt = New Table( "Sample",
	Add Rows( 24 ),
	New Column( "Patient_ID",
		Character,
		"Nominal",
		Set Values(
			{"PAT1", "PAT2", "PAT3", "PAT4", "PAT5", "PAT6", "PAT1", "PAT2", "PAT3",
			"PAT4", "PAT5", "PAT6", "PAT1", "PAT2", "PAT3", "PAT4", "PAT5", "PAT6",
			"PAT1", "PAT2", "PAT3", "PAT4", "PAT5", "PAT6"}
		)
	),
	New Column( "Time_point",
		Character,
		"Nominal",
		Set Selected,
		Set Values(
			{"BL", "BL", "BL", "BL", "BL", "BL", "W24", "W24", "W24", "W24", "W24",
			"W24", "BL", "BL", "BL", "BL", "BL", "BL", "W24", "W24", "W24", "W24",
			"W24", "W24"}
		)
	),
	New Column( "Variable_A",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values(
			[19, 36, 24, 25, 19, 32, 15, 25, 12, 21, 14, 42, 19, 36, 24, 25, 19, 32,
			15, 25, 12, 21, 14, 42]
		)
	),
	New Column( "Variable B",
		Numeric,
		"Continuous",
		Format( "Best", 12 ),
		Set Values(
			[-1.3287, -1.9208, -1.436, -1.577, -0.1477, -1.849, -0.65601, -0.64708,
			-0.17958, -1.06807, 0.06291, -1.328, -1.3287, -1.9208, -1.436, -1.577,
			-0.1477, -1.849, -0.65601, -0.64708, -0.17958, -1.06807, 0.06291, -1.328
			]
		)
	),
	New Column( "Page_Var",
		Character,
		"Nominal",
		Set Values(
			{"Page1", "Page1", "Page1", "Page1", "Page1", "Page1", "Page1", "Page1",
			"Page1", "Page1", "Page1", "Page1", "Page2", "Page2", "Page2", "Page2",
			"Page2", "Page2", "Page2", "Page2", "Page2", "Page2", "Page2", "Page2"}
		)
	)
);

dt << Graph Builder(
	Size( 534, 954 ),
	Show Control Panel( 0 ),
	Variables(
		X( :Variable_A ),
		Y( :Variable B ),
		Page( :Page_Var ),
		Overlay( :Patient_ID ),
		Color( :Time_point )
	),
	Elements( Points( X, Y, Legend( 3 ) ), Line( X, Y, Legend( 5 ) ) ),
	SendToReport(
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				3,
				Properties( 0, {Marker( "FilledCircle" )} ),
				Properties( 1, {Marker( "FilledCircle" )} ),
				Properties( 2, {Marker( "FilledCircle" )} ),
				Properties( 3, {Marker( "FilledCircle" )} ),
				Properties( 4, {Marker( "FilledCircle" )} ),
				Properties( 5, {Marker( "FilledCircle" )} ),
				Properties( 6, {Marker( "FilledCircle" )} ),
				Properties( 7, {Marker( "FilledCircle" )} )
			), Legend Model(
				5,
				Properties( 0, {Line Color( 0 )} ),
				Properties( 1, {Line Color( 0 )} )
			)}
		),
Dispatch( {}, "Graph Builder", FrameBox, {Marker Size( 5 )} ),
Dispatch( {}, "Graph Builder", FrameBox( 2 ), {Marker Size( 5 )} ) ) );
Jim
