Hello

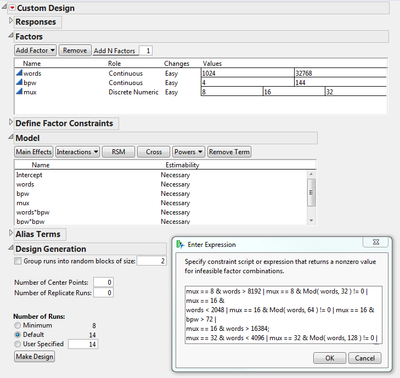

I am attempting to use the Custom Design DOE (Jmp 11) to setup an experiment. There are three (3) factors: mux, words, and bpw and two responses (not shown).

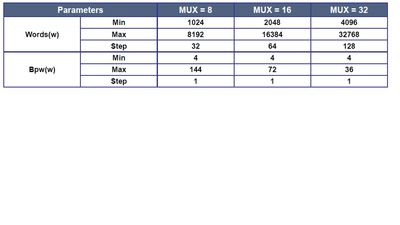

In my custom design, I designated mux as a 3-level* discrete factor* with values of 8, 16, and 32. Words as a* continuous* variable between 1024 and 32768. And bpw as a *continuous* variable between 4 and 144, as per the requirements in the attached table.

Additionally, I enabled a script for the following *disallowed combinations*:

mux==8 & words>8192 | mux == 8 & mod(words, 32) !=0;

mux == 16 &words < 2048 | mux == 16 & Mod( words, 64 ) != 0 | mux == 16 & bpw > 72 | mux == 16 & words > 16384;

mux==32 & words<4096 | mux == 32 & mod(words, 128) !=0 | mux ==32 & bpw >36;

However the above *disallowed combination *is not being respected when the design is made, even when I enable 3^{rd} level interactions in the model, including mux*words, mux*bpw, bpw*words, and mux*bpw*words.

Any ideas on what I could be doing wrong here??

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

You're almost there - first thing I noticed, is that you'll want to connect your conditions with OR ( "|"s). With the semicolons, the disallowed combinations is only looking at the final statement to evaluate.

The other issue you'll run into is with the Mod function. Because words is continuous, outside the min and the max, the custom designer is going to have issues landing right on an integer.

If you put a bound on the mod function, it will find a design, such as in the code below. You could then change the value to the nearest increment for each level of mux.

The other option is to have words be a discrete numeric variable with a small subset of increments that work. For example, you could take the lower, upper bounds and midpoint for each level of mux. The Mod function should behave better in that case (ie, you don’t need to set the bounds on it like in the code below).

Hope that helps!

Cheers,

Ryan

DOE**(**

**{**Add Response**(** Maximize, "Y", **.**, **.**, **.** **)**,

Add Factor**(** Categorical, **{**"8", "16", "32"**}**, "mux", **0** **)**,

Add Factor**(** Continuous, **1024**, **32768**, "words", **0** **)**,

Add Factor**(** Continuous, **4**, **144**, "bpw", **0** **)**, Set Random Seed**(** **1253068796** **)**,

Number of Starts**(** **40** **)**, Add Term**(** **{****1**, **0}** **)**, Add Term**(** **{****1**, **1}** **)**,

Add Term**(** **{****2**, **1}** **)**, Add Term**(** **{****3**, **1}** **)**, Set Sample Size**(** **20** **)**,

Disallowed Combinations**(**

mux == **1** & words > **8192** | mux == **1** & **(**Mod**(** words, **32** **)** >= **1)** | mux == **2** &

words > **16384** | mux == **2** & words < **2048** | mux == **2** & **(**Mod**(** words, **64** **)** >= **1)**

| mux == **2** & bpw > **72** | mux == **3** & words < **4096** | mux == **3** &

**(**Mod**(** words, **128** **)** >= **1)** | mux == **3** & bpw > **36**

**)}**

**)**;
