Can I use a list to populate the X and Y axis in graph builder when scripting?

ellielee115

Community Trekker

Joined:

Aug 10, 2014

I have a list of X and Y values that the user selects. I want those list values to populate the x and y axis in graph builder. Is this possible.? I continually get an error that the column names cannot be found?

For example:

x_values = {"x1", "x2", "x3"}

y_values = {'y1", "y2", "y3"}

I want the x axis to be the x_values and the y axis to be the y_values. This changes by how the user selects though so the values cannot be hardcoded.

4 REPLIES
pmroz

Super User

Joined:

Jun 23, 2011

Try something like this:

dt = open("$sample_data\Big Class.jmp");

column(dt, "height") << set name("x1");

column(dt, "weight") << set name("y3");

x_values = {"x1", "x2", "x3"};

y_values = {"y1", "y2", "y3"};

Graph Builder(

    Show Control Panel( 0 ),

    Variables( X( :column(dt, x_values[1]) ), Y( column(dt, y_values[3]) ) ),

    Elements( Points( X, Y, Legend( 1 ), Jitter( 1 ) ) )

);

brady_brady

Staff

Joined:

Jun 9, 2012

If you need to put all of the selections in at once (for multiple variables on X and Y axes simultaneously), and you don't know the size of the lists in advance, you could do something involving expressions, which is a somewhat advanced, but flexible, technique. Here's an example. Note that gbExpr is the simply whatever code you want for graph builder, except for the Variables() part, which we will build dynamically:

dt = Open( "$Sample_Data/Car Physical Data.jmp" );

x_values = {"Country", "Type", "Weight"};

y_values = {"Turning Circle", "Displacement", "Horsepower"};

gbExpr = Expr( Graph Builder() );

varExpr = Expr( Variables() );

For( i = 1, i <= N Items( x_values ), i++,

    Insert Into( varExpr, Parse( "X( :" || x_values || ")" ) )

);

For( i = 1, i <= N Items( y_values ), i++,

    Insert Into( varExpr, Parse( "Y( :" || y_values || ")" ) )

);

Insert into( gbExpr, Name Expr( varExpr ) );

gbExpr;

Cheers,

Brady

ellielee115

Community Trekker

Joined:

Aug 10, 2014

Thanks for your help!

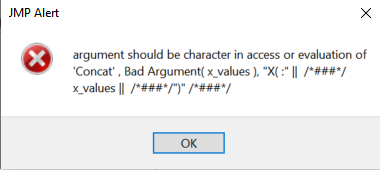

Unfortunately when I try to run this I get the following error:

Unexpected ")".

Trying to parse operand for "-" operator.

Line 1 Column 12: Y( : A-3 - ►)

My list of Y variables looks like this y_variables = {" A-3-", " A-4-"}

I also am not not trying to put multiple y variables on the same axis. I want each of the y variables to be its own graph sorted by the same x values. I just need the y axis in graph builder to be able to change based on what is in the y_variables list (this list is options that the user selects).

gianpaolo_polsi

Community Trekker

Joined:

Mar 23, 2016

hello,

i need to populate graph builder with some dispatch...

but im not able to pass the string "400" by script becasue the char " "



SendToReport(

Dispatch(

{},

"400",

ScaleBox,



can you help me , thank you

Gianpaolo
